Avery-Dennison AD Bling M730 RFID Tag

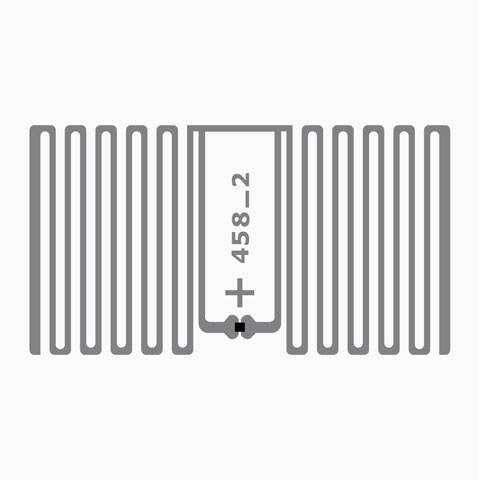

The AD Bling M730 from Avery Dennison Smartrac is a high-performance RFID inlay specifically designed for small item-level tagging applications. Operating within the UHF frequency band of 860 – 960 MHz, it utilizes the Impinj M730 chip and meets ISO 18000-63 and EPC Class 1 Gen 2 international standards. With compact antenna dimensions of 22 x 12.5 mm (0.9 x 0.5 inches), it is ideal for industries such as apparel, healthcare, and beauty, making it perfect for tagging items like fashion jewelry, sunglasses, and personal care products. The AD Bling M730 offers excellent performance in rapidly changing environments, and its small form factor allows for easy conversion into hang-tags or attachment to small products. Available in various delivery formats and compliant with both RoHS and REACH regulations, this inlay operates effectively in temperatures ranging from -40 °C to 85 °C (-40 °F to 185 °F) and is backed by stringent quality assurance standards.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
Avery-Dennison AD Bling M730 RFID Tag Options
-
Avery-Dennison 3008320 RFID Tag
RFID Tag, Avery-Dennison AD Bling M730, RFID Paper Label, 1 x 0.6, Impinj Monza M730 Chip, AD Bling M730 inlay, UHF Frequency, Ideal for Fashion Jewelry and Sunglasses, Pharmaceutical and Healthcare, Personal Care Products.Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
Avery-Dennison AD Bling M730 RFID Tag Model Overview
The AD Bling M730 is a high-performance RFID inlay and tag designed specifically for small item-level tagging applications. Operating within the UHF 860 – 960 MHz frequency band, it is equipped with the Impinj M730 chip and conforms to the ISO 18000-63, EPC Class 1 Gen 2 international standards.
Key Features
- Antenna Dimensions: 22 x 12.5 mm (0.9 x 0.5 inches), making it ideal for compact applications.
- Industry Segments: Apparel, Healthcare, Beauty and Personal Care.
- Applications: Perfect for tagging fashion jewelry, sunglasses, pharmaceutical and healthcare products, and personal care items.
- RoHS Compliance: Adheres to EU Directive 2011/65/EC and Directive (EU) 2015/863.
- REACH Compliance: Conforms to Regulation (EC) No 1907/2006.
Benefits
The AD Bling M730 offers excellent performance for jewelry and cosmetics applications, with a small form factor that allows easy conversion into small-sized hang-tags or attachment to small cosmetic items. The Impinj M730 chip features an autotune capability, ensuring optimal performance even in rapidly changing environments. The product is available in dry, wet, and label delivery formats and is 100% performance tested.
Technical Specifications
- Orientation Sensitivity: Designed for optimal read range.
- EPC and User Memory: 128-bit EPC and 0-bit user memory.
- TID Memory: 96-bit with a 48-bit unique serial number.
- Delivery Formats: Available as dry inlay, wet inlay, and label.
- Die-Cut Dimension: 25 x 15 mm (1 x 0.60 inches).
- Inlay Substrate: PET.
- Face Sheet: Mid-gloss paper for label format.
- Standard Pitch: 20 mm (0.787 inches).
- Web Width: 28 mm (1 inch).
- Core Size: 76 mm (3 inches).
- Quantity/Reel: Options include 10,000 pcs/reel or 5,000 pcs/reel, with corresponding box quantities.
- Operating Temperature: -40 °C to 85 °C (-40 °F to 185 °F).
Quality Assurance
The AD Bling M730 complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards, ensuring a reliable and state-of-the-art product suitable for a variety of retail applications.
