AudioCodes M800B-V-2ET4S-4L Products

Part Number: M800B-V-2ET4S-4L
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
PoE (RJ-45) Port
Yes
USB
Yes
Number of Network (RJ-45) Ports
6
Number of FXS (RJ-11) Ports
4

Product Description:

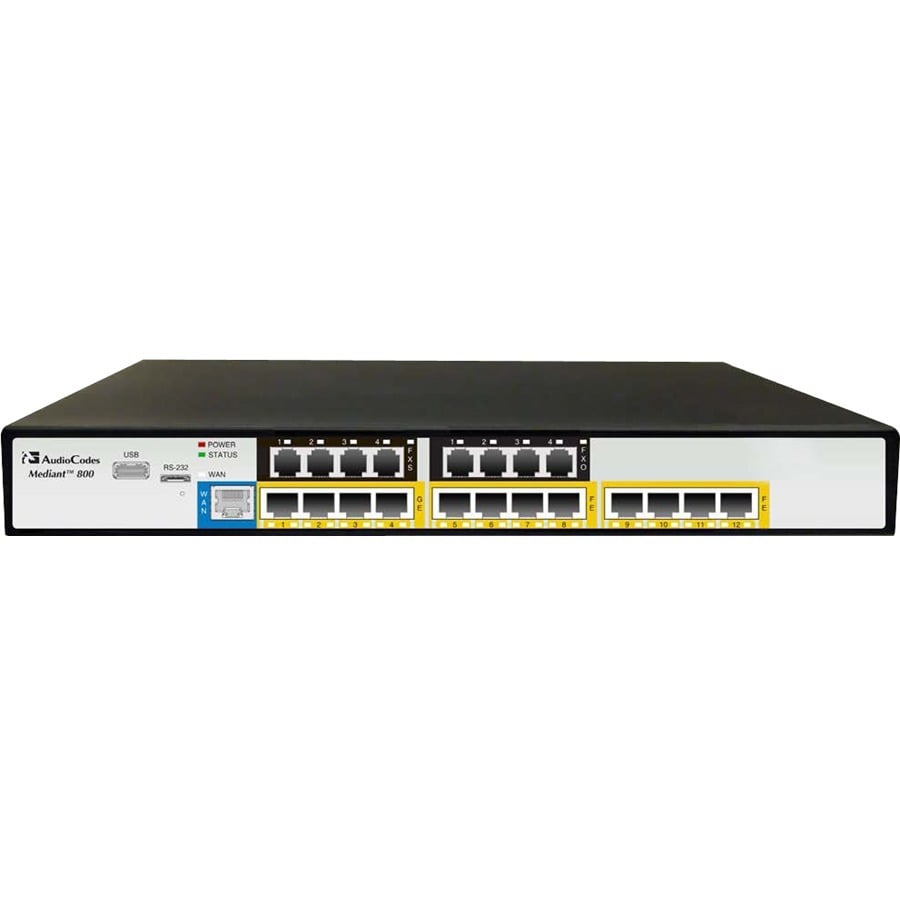

  AudioCodes Mediant 800B VoIP Gateway - 6 x RJ-45 - 4 x FXS - USB - PoE Ports - Gigabit Ethernet - ADSL2+ - Wireless LAN - IEEE 802.11n - 1U High
Explore all AudioCodes Parts Accessories
Add to Quote
AudioCodes M800B-V-2ET4S-4L Products
AudioCodes M800B-V-2ET4S-4L Products

AudioCodes Parts Accessory Model Overview

Products and parts from AudioCodes.
AudioCodes M800B-V-2ET4S-4L Products Overview
AudioCodes Mediant™ 800 MSBR is an all-in-one, Multi-Service Business Router solution designed to provide converged Voice & Data services for small-to-mid size business (SMB) customers, and to form a well-managed point of demarcation for service providers. The Mediant 800 MSBR is based on AudioCodes' VoIPerfectHD best-of-breed Media Gateway technology, integrating a variety of communication functions into a single platform to support fundamental services, such as VoIP mediation, Data Routing, WAN access, Voice & Data security, survivability, and third party value-added services applications. These services allow smooth connectivity to cloud services.
Interfaces/Ports
PoE (RJ-45) Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
6
Number of FXS (RJ-11) Ports:
4
Media & Performance
Broadband Transmission Technology:
ADSL2+
I/O Expansions
SIM Card Supported:
No
Network & Communication
Carrier Supported:
  • E-carrier
  • T-carrier
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Wireless Specifications
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11n
Management & Protocols
Voice Codec:
  • G.711
  • G.723.1
  • G.729a
  • G.722
  • G.165
  • G.168
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Desktop
  • Rack-mountable
Compatible Rack Unit:
1U
Height:
1.8"
Width:
13.6"
Depth:
12.6"
Miscellaneous
Certifications & Standards:
IEEE Standards:
  • 802.1P
  • 802.1Q
  • 802.11n
Safety and EMC Standards:
  • UL60950-1
  • EN60950-1
  • EN55024
  • EN55022 Class A
  • EN61000-3-2
  • EN61000-3-3
  • EN300 386
  • FCC 47 Part 15 Class A
Telecommunication Standards:
  • TIA/EIA-IS-968
  • ETSI ES 203 021
Environmentally Friendly:
Yes
Environmental Certification:
  • EU RoHS
  • China RoHS
  • WEEE
  • REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222605
The AudioCodes M800B-V-2ET4S-4L Products is also known as AUC-M800BV2ET4S4L
