Number of Network (RJ-45) Ports:
2
Interfaces/Ports
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
CompactPCI
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
1000Base-SX
Wireless Specifications
Wireless LAN:
No
Cellular Data Connectivity Technology:
- CDMA
- UMTS
Management & Protocols
Voice Codec:
- G.711
- G.723.1
- G.726
- G.727
- G.729a
- G.729b
- G.165
- G.168
- T.38
- GSM
- iLBC
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Unit:
2U
Height:
3.5"
Width:
19"
Depth:
11.7"
Weight (Approximate):
35.27 lb
Miscellaneous
Package Contents:

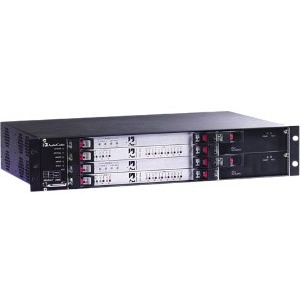

- Mediant 3000 High Availability VoIP Gateway
- 1+1 x TP-6310 Boards
- 1 x RTM for TP-6310 Active Board
- 1 x Redundant RTM for TP-6310 Passive Board
- T3 and Electrical GbE Connectors
- 2 x System Alarm Boards
Certifications & Standards:
Telecommunication Standards:
- FCC part 68
- TBR4
- TBR13
- UL60950
- FCC part 15 Class A
- CE Mark
- EN55022 Class A
- EN60950
- EN55024
- EN300 386
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
- China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43222605
Get help from a Barcoding Expert!
The AudioCodes M3K7/AC Data Networking is also known as
AUC-M3K7/AC
