AudioCodes M2K-D5 Telecommunication Equipment

Part Number: M2K-D5

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Serial Port
No
PoE (RJ-45) Port
No
USB
No
Management Port
No

Product Description:

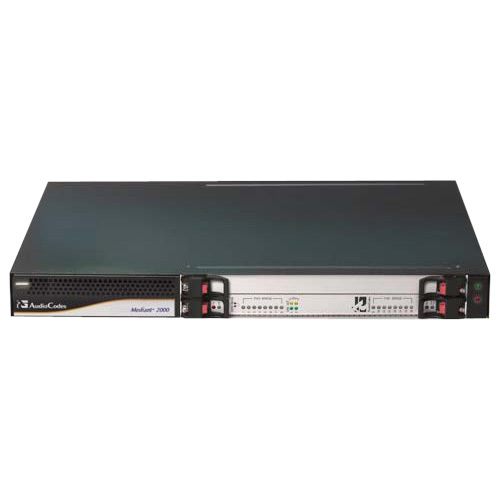

  AudioCodes Mediant 2000 VoIP Gateway - - 4 x Expansion Slots - 1U High - Rack-mountable

AudioCodes Mediant 2000 VoIP Media Gateway Telecommunication Equipment Model Overview

The Mediant™ 2000 VoIP Media Gateway by AudioCodes is your ideal solution for converged, wireline, wireless, cable broadband, and fixed-mobile VoIP applications. Designed for cost-effective performance, this compact 1U chassis integrates state-of-the-art Voice over Packet technology, supporting up to 480 simultaneous voice calls. With its flexible call control protocols and robust architecture, the Mediant 2000 ensures high voice quality and rapid deployment for enterprises and small carrier network environments, addressing diverse communication needs seamlessly.

Key Features
  • Competitively designed for highest voice quality.
  • Flexible scalability from 1 to 16 E1/T1/J1 spans.
  • Supports a wide variety of call control protocols.
  • Global deployment with extensive PSTN interfaces.
  • NEBS Level 3 certified for reliability.


Specifications
  • Capacities:
    • VoIP LBR: Up to 480 independent, simultaneous voice calls.
    • 2, 4, 8 or 16 E1/T1/J1 spans.
  • Voice Coders: G.711, G.723.1, G.726/7, G.729A/B, GSM-FR.
  • Fax Support: T.38 compliant.
  • Power Supply: Universal AC or DC options.
  • Physical: 1U high and rack mountable.
  • Management: User-friendly GUI, SNMP v2.
  • Security: IPSEC, HTTPS, SRTP, TLS.
AudioCodes M2K-D5 Telecommunication Equipment Overview

This Media Gateway is intelligently packaged in a stackable 1U chassis and is the right-sized solution for small-scale needs. Incorporating AudioCodes' leading Voice over Packet technology, the Mediant 2000 enables Network Equipment Providers (NEPs) and System Integrators (SIs) rapid time-to-market and reliable cost-effective deployment of next-generation networks. The gateway is based on VoIPerfect architecture, AudioCodes' underlying best-of-breed core media gateway technology for all of its products.

Interfaces/Ports
Serial Port:
No
PoE (RJ-45) Port:
No
USB:
No
Management Port:
No
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
CompactPCI
SIM Card Supported:
No
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Voice Codec:
  • G.723.1
  • G.711
  • G.727
  • G.726
  • G.729ab
  • G.728
  • GSM
  • G.165
  • G.168
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Unit:
1U
Miscellaneous
Certifications & Standards:

Telecommunication:

  • FCC part 68
  • TBR13
  • TBR4

Safety and EMC:

  • UL60950
  • FCC part 15 Class A
  • CE Mark (EN55024, EN55022 Class A, EN60950, EN300 386)

Environmental:

  • GR -1089-Core Type 1 & 3
  • ETS300 019
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43222605
