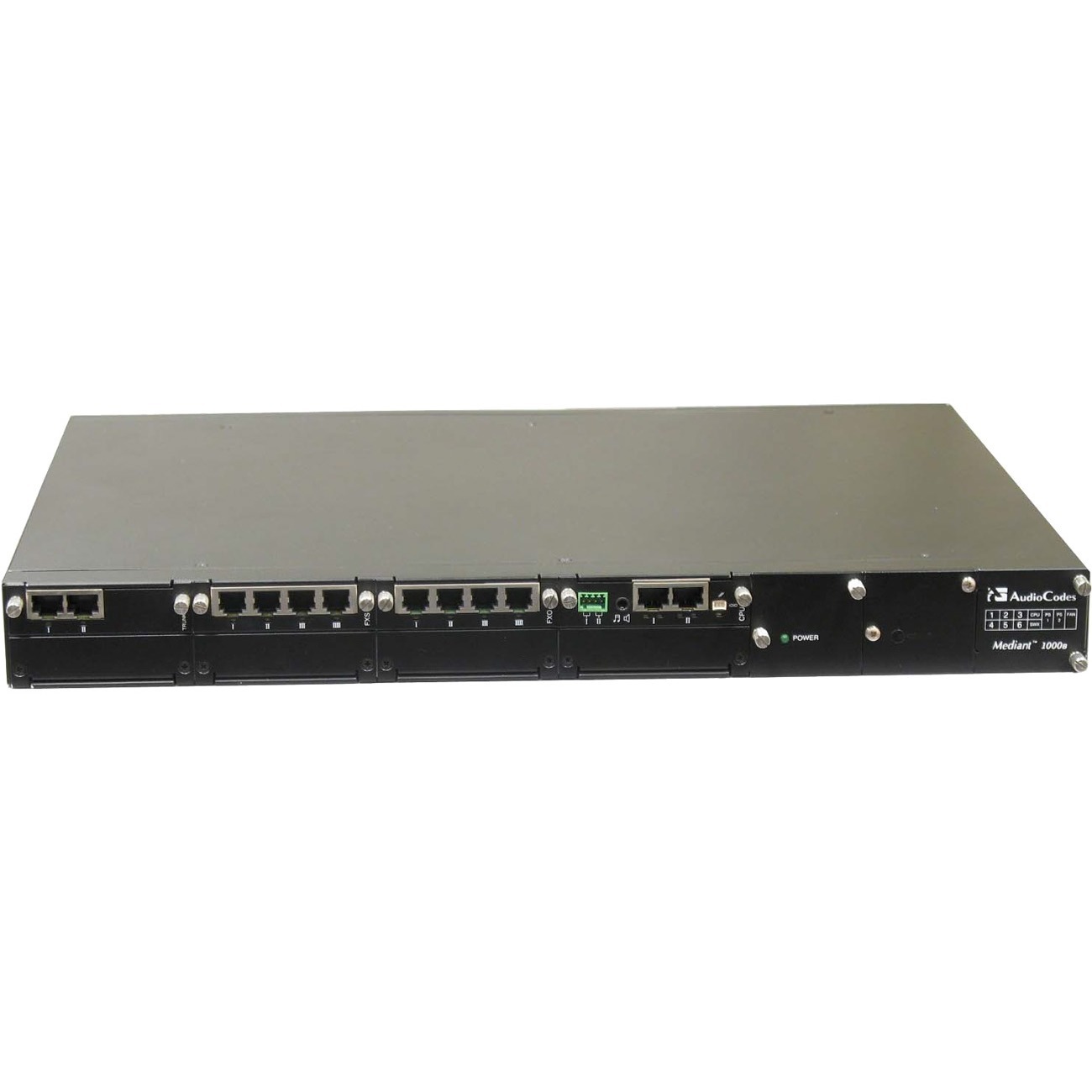

AudioCodes M1KB-ESBC-120 Telecommunication Equipment

AudioCodes Mediant 1000 VoIP Media Gateway - AudioCodes Mediant 1000B Enterprise Session Border Controller (E-SBC) - 120 Sessions - 6 x RJ-45 - Gigabit Ethernet - 14 x Expansion Slots - 1U High
$7,702.00
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
AudioCodes Mediant 1000 VoIP Media Gateway Telecommunication Equipment Model Overview
The Mediant 1000 Hybrid Media Gateway is a modular, compact and cost-effective media gateway solution which has been designed to interface between TDM and IP networks in enterprises or small-scale carrier locations. The compact Mediant 1000 modular gateway is extremely scalable and supports multiples of 1, 2 or 4 E1/T1/J1 spans or 1 to 24 analog ports in various FXS/FXO configurations. The Mediant 1000 also supports mixed digital/analog configurations.
AudioCodes M1KB-ESBC-120 Telecommunication Equipment Overview

The AudioCodes Mediant 1000 Enterprise Session Border Controller (E-SBC) and Media Gateway is designed to provide a complete connectivity solution for small-to-medium sized enterprises. Supporting up to 192 concurrent voice sessions in a 1U modular platform, the Mediant 1000 provides versatile connectivity between TDM and VoIP networks.

The modular Mediant 1000 connects IP-PBXs to any SIP trunking service provider, scaling to 150 concurrent sessions. It offers superior performance in connecting any SIP to SIP environments, legacy TDM-based PBX systems to IP networks, and IP-PBXs to the PSTN.

Interfaces/Ports
Serial Port:
Yes
PoE (RJ-45) Port:
No
Number of Network (RJ-45) Ports:
6
I/O Expansions
Number of Total Expansion Slots:
14
Network & Communication
Carrier Supported:
  • T-carrier
  • E-carrier
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Voice Codec:
  • G.711
  • G.723.1
  • G.726
  • G.727
  • G.729ab
  • G.165
  • G.168
  • T.38
  • iLBC
  • GSM
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Desktop
Compatible Rack Unit:
1U
Width:
13.6"
Depth:
12.6"
Miscellaneous
Package Contents:
  • Mediant 1000B Enterprise Session Border Controller (E-SBC) - 120 Sessions
  • 1 x AC Power Supply
Certifications & Standards:
Telecommunication:
  • TIA/EIA-IS-968
  • TBR-4
  • TBR-13
  • TBR-21
Safety and EMC:
  • UL60950-1
  • FCC 47 CFR part 15 Class B
  • CE Mark
  • EN55022 Class B
  • EN60950-1
  • EN55024
  • EN300 386
  • EN61000-3-2/3-3
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222605
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The AudioCodes M1KB-ESBC-120 Telecommunication Equipment is also known as AUC-M1KBESBC120
