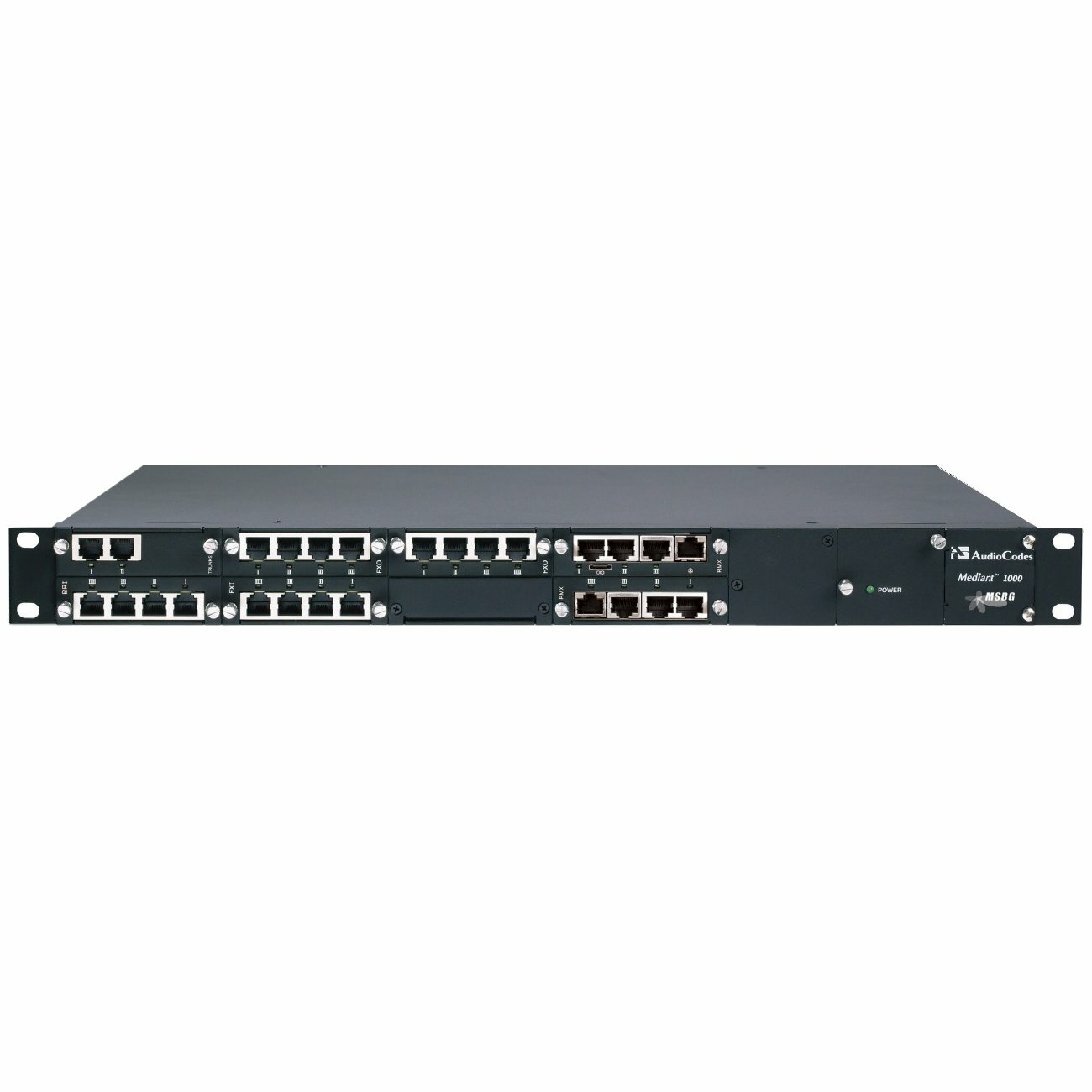

AudioCodes M1KB-CH Telecommunication Equipment

Part Number: M1KB-CH
$1,998.36
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Serial Port
No
PoE (RJ-45) Port
No
USB
No
Management Port
No

Product Description:

  Mediant 1000 VoIP Media Gateway (1000B Chassis for Voice Modules with AMC Supp.)

AudioCodes Mediant 1000 VoIP Media Gateway Telecommunication Equipment Model Overview

The Mediant™ 1000 VOIP Media Gateway from AudioCodes is an exceptional, cost-efficient solution for businesses looking to enhance their voice communication capabilities. Utilizing VolPerfect™ technology, it guarantees superior voice quality while seamlessly interfacing between legacy TDM and modern IP networks. Its scalable architecture allows organizations to expand their telephony infrastructure as needed, making it perfect for both small-scale carriers and enterprises. With built-in life-line fallback to PSTN during power failures or network issues, the Mediant 1000 ensures reliable connectivity.
Key Features
  • Outstanding voice quality with AudioCodes VolPerfect™ technology
  • Scalable "pay-as-you-grow" architecture supporting 1 to 24 analog ports and up to 4 digital spans
  • Rich interface options including E1/T1/J1 and FXS/FXO
  • Life-line fallback to PSTN for uninterrupted service
  • Ideal for OEM VoIP applications with the flexibility to host partner applications

Specifications
  • Interfaces: 6 slots for analog or 4 slots for digital modules
  • Modularity and Capacity:
    • Up to 24 analog ports or 4 digital spans
    • Support for mixed digital and analog configurations
  • Digital Modules: Up to 4 digital modules with optional life-line spans
  • Ethernet: Dual redundant 10/100 Base-TX Ethernet ports
  • Supported Protocols: SIP, H.323, MGCP
  • Power Supply: Universal 90-260 V AC, redundant power supply
  • Physical Dimensions: 1U high, 19-inch wide
AudioCodes M1KB-CH Telecommunication Equipment Overview

The Mediant 1000 is based on VoIPerfect, AudioCodes' underlying, best-of-breed, media gateway core technology for all of its products. The Mediant 1000 provides superior voice-technology for connecting legacy telephone and PBX systems to IP networks, as well as seamless connection of the IP-PBX to the PSTN. In addition to operating as a pure media gateway, the Mediant 1000 can also host partner applications and serve as an IP-PBX platform. The Mediant 1000 is fully interoperable with multiple vendor gateways, Softswitches, gatekeepers, proxy servers, IP phones, Session Border Controllers and firewalls.

Interfaces/Ports
Serial Port:
No
PoE (RJ-45) Port:
No
USB:
No
Management Port:
No
I/O Expansions
Total Number of Expansion Slots:
6
Expansion Slot Type:
CompactPCI
SIM Card Supported:
No
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Voice Codec:
  • iLBC
  • GSM
  • T.38
  • G.168
  • G.165
  • G.711
  • G.723.1
  • G.726
  • G.727
  • G.729
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Unit:
1U
Miscellaneous
Certifications & Standards:

Telecommunication:

  • TIA/EIA-IS-968
  • TBR-4
  • TBR-13
  • TBR-21

Safety and EMC:

  • FCC 47 CFR part 15 Class B
  • UL60950-1
  • CE Mark (EN55022 Class B, EN60950-1, EN55024, EN300 386, EN61000-3-2, EN61000-3-3)

Environmental :

  • ETS 300019-2-1 Storage T1.2
  • ETS 300019-2-2 Transportation T2.3
  • ETS 300019-2-3 Operating T3.2
Environmentally Friendly:
Yes
Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222605
