Full specifications (PDF)
Number of Total Expansion Slots:
6
AudioCodes M1K-D1 Telecommunication Equipment
Part Number:
M1K-D1

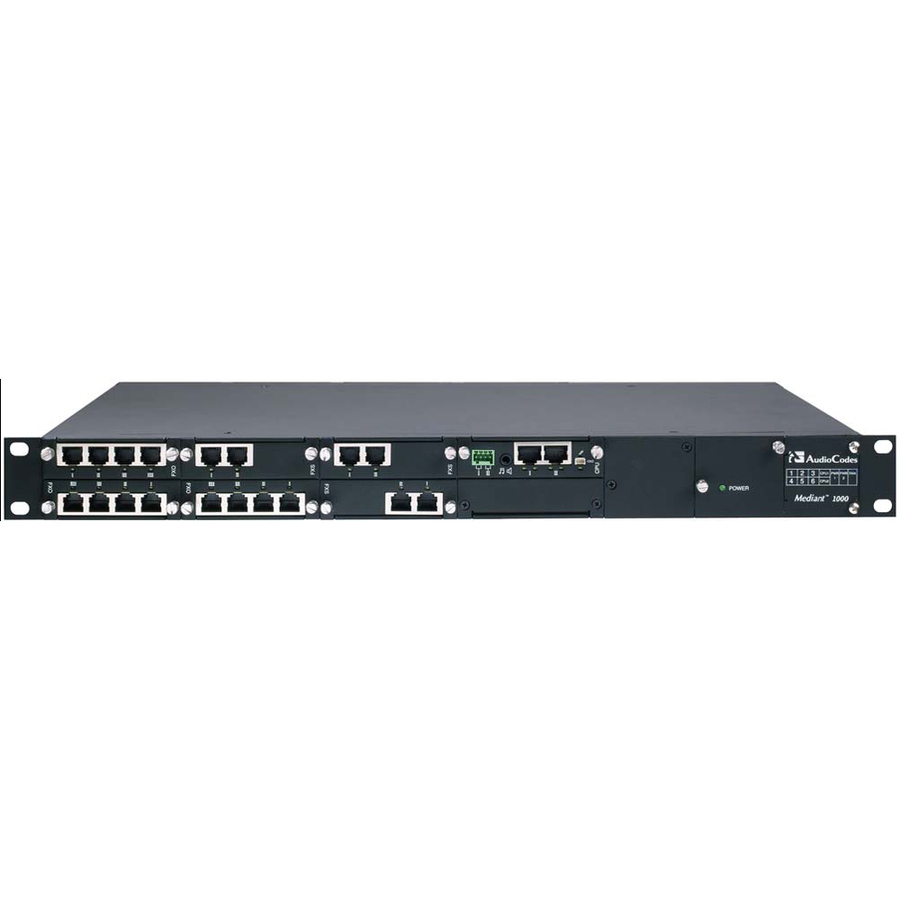

AudioCodes Mediant 1000 VoIP Media Gateway Telecommunication Equipment Model Overview
The Mediant™ 1000 VOIP Media Gateway from AudioCodes is an exceptional, cost-efficient solution for businesses looking to enhance their voice communication capabilities. Utilizing VolPerfect™ technology, it guarantees superior voice quality while seamlessly interfacing between legacy TDM and modern IP networks. Its scalable architecture allows organizations to expand their telephony infrastructure as needed, making it perfect for both small-scale carriers and enterprises. With built-in life-line fallback to PSTN during power failures or network issues, the Mediant 1000 ensures reliable connectivity.
Key Features
Specifications
Key Features
- Outstanding voice quality with AudioCodes VolPerfect™ technology
- Scalable "pay-as-you-grow" architecture supporting 1 to 24 analog ports and up to 4 digital spans
- Rich interface options including E1/T1/J1 and FXS/FXO
- Life-line fallback to PSTN for uninterrupted service
- Ideal for OEM VoIP applications with the flexibility to host partner applications
Specifications
- Interfaces: 6 slots for analog or 4 slots for digital modules
- Modularity and Capacity:
- Up to 24 analog ports or 4 digital spans
- Support for mixed digital and analog configurations
- Digital Modules: Up to 4 digital modules with optional life-line spans
- Ethernet: Dual redundant 10/100 Base-TX Ethernet ports
- Supported Protocols: SIP, H.323, MGCP
- Power Supply: Universal 90-260 V AC, redundant power supply
- Physical Dimensions: 1U high, 19-inch wide
AudioCodes M1K-D1 Telecommunication Equipment Overview
The MediantTM 1000 is AudioCodes' cost-effective, converged wireline VoIP media gateway. Intelligently packaged in a stackable 1U chassis, it is designed to interface between TDM & IP networks in enterprises or small-scale carrier locations. Incorporating AudioCodes' innovative Voice over Packet technology, the Mediant 1000 enables rapid time-to-market and reliable cost-effective deployment of next-generation networks.
Scale Up As Your Business Grows
The Mediant 1000 matches the density requirements for small locations while meeting enterprises and service providers' demands for scalability. The compact Mediant 1000 Modular Gateway is extremely scalable and supports multiples of 1, 2, or 4 E1/T1/J1 spans, 4 to 20 BRI ports or 1 to 24 analog ports in various FXO/FXS configurations. The Mediant 1000 also supports mixed digital/analog with media processing capabilities such as conferencing, play/record configurations.
I/O Expansions
Management & Protocols
Voice Codec:
- T.38
- G.165
- G.168
- G.711
- G.723.1
- G.726
- G.727
- G.729
- GSM
- iLBC
Physical Characteristics
Form Factor:
- Rack-mountable
- Desktop
Compatible Rack Unit:
1U
Item Numbers
UNSPSC:
43222605
