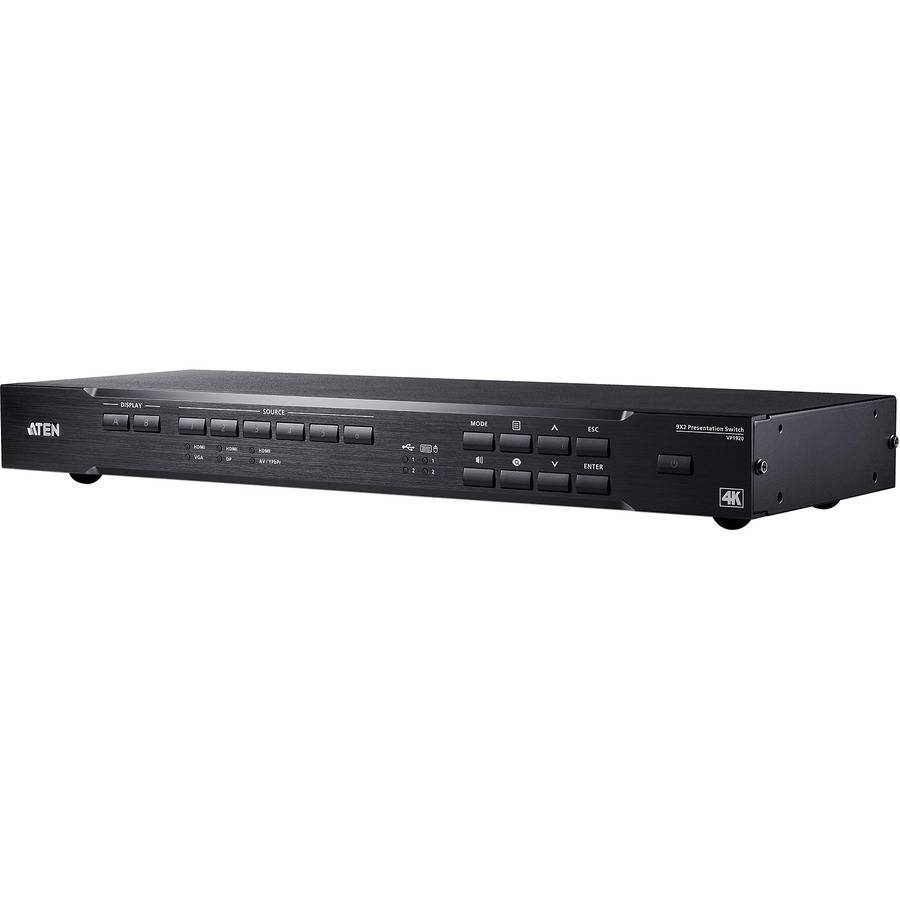

ATEN VP1920 Network Switch

ATEN - Network Switches, ATEN, 9 x 2 4K Presentation Matrix Switch-TAA Compliant, 4096 x 2160, 4K, 9 x 2, 2 x HDMI Out, 1 x DisplayPort In
  • Supports multi-format 9 Inputs and 2 HDMI outputs: 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr), 3 HDMI inputs, 2 HDMI output,
  • VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
  • Embed/De-embed Audio-HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
  • Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
  • EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
  • HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
  • Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
  • Source preview - quickly identify and switch to the target content
  • Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
  • Auto switching - automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
Read More

Need a different version? See all ATEN Parts Wireless Switches

$753.12
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN VP1920 Network Switch
ATEN VP1920 Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN VP1920 Network Switch Overview

The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.

Technical Information
Connectivity Technology:
Cable
Number of Input Devices Supported:
9
Device Supported:
  • Display
  • Blu-ray Disc Player
  • Set-top Box
  • Media Center
Number of Displays Supported:
2
Video
Graphics Modes:
4K
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
HDMI In:
Yes
HDMI Out:
Yes
VGA In:
Yes
DisplayPort:
Yes
Number of USB Ports:
6
Number of HDMI Inputs:
6
Number of HDMI Outputs:
2
Number of VGA Inputs:
1
Number of DisplayPort Inputs:
1
Media & Performance
Maximum Operating Distance:
49.21 ft
Physical Characteristics
Form Factor:
Desktop
Height:
1.7"
Width:
17.2"
Depth:
6.4"
Weight (Approximate):
5.20 lb
Miscellaneous
Package Contents:
  • 9 x 2 4K Presentation Matrix Switch
  • 1 x Power Cord
  • 1 x IR Receiver
  • 1 x IR Remote Control
  • 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
GTIN: 0672792008016, 4719264646089
UPC: 672792008016
EAN: 0672792008016, 4719264646089
UNSPSC: 43211601
