ATEN VK108US Accessory

ATEN - Keyboards & Front Panels, ATEN, Control System, 8-button Keypad (US, 1 Gang)-TAA Compliant

Key pad - provides physical connection to the ATEN Control System
Fully customizable with 14 layout combinations of 4 to 8 buttons
System LED indicators for quick connection status check
Dual-color button LEDs for clear indication and visibility in dark environments
Easy ID paring with Control Box for Ethernet communication
Up to 8 keypads connect to a single Control Box for future scalability
Unrestricted modes support flexible behavior settings for each button
Intuitive web GUI for easy keypad configuration
Dual power supply - DC 5V or Power over Ethernet
Customized button engraving service

Need a different version? See all ATEN Parts Wireless Switches

$318.75

Chat Now for Qty Discount

Add to Quote

Overview

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.

ATEN VK108US Accessory Overview

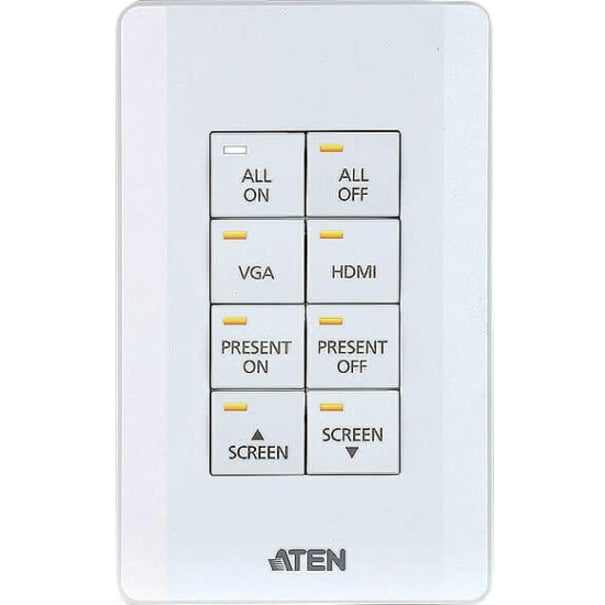

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button's ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.

Detailed Specs

Physical Characteristics

Product Material:

Plastic

Form Factor:

Wall Mountable

Height:

1.5"

Width:

2.8"

Weight (Approximate):

4.59 oz

Miscellaneous

Package Contents:

Control System - 8-button Keypad (US, 1 Gang)
1 x Button Pack
1 x Terminal Block
1 x Faceplate
1 x User Instructions

Additional Information:

Ethernet:

1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0

Keypad Layout: 4~8 buttons customizable in 14 keypad layouts

Switches

Controller ID 1 x 16-segment Switch
Keypad ID 1 x 8-segment Switch

Reset Button: 1 x Semi-recessed Pushbutton
Power Consumption:

DC5V:1.25W:6BTU
DC48V:1.58W:7BTU

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Plastic
Weight: 0.13 kg ( 0.29 lb )

Dimensions:
(L x W x H) 11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)

Faceplate Dimension:
(L x W x H) 11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)

Application/Usage:

Meeting Room
Classroom
Conference Room

Compatibility:

Aten VK2100 Control System
Aten VK1100 Control System

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0672792007798, 0817218520936

UPC: 672792007798, 817218520936

EAN: 0672792007798, 0817218520936
