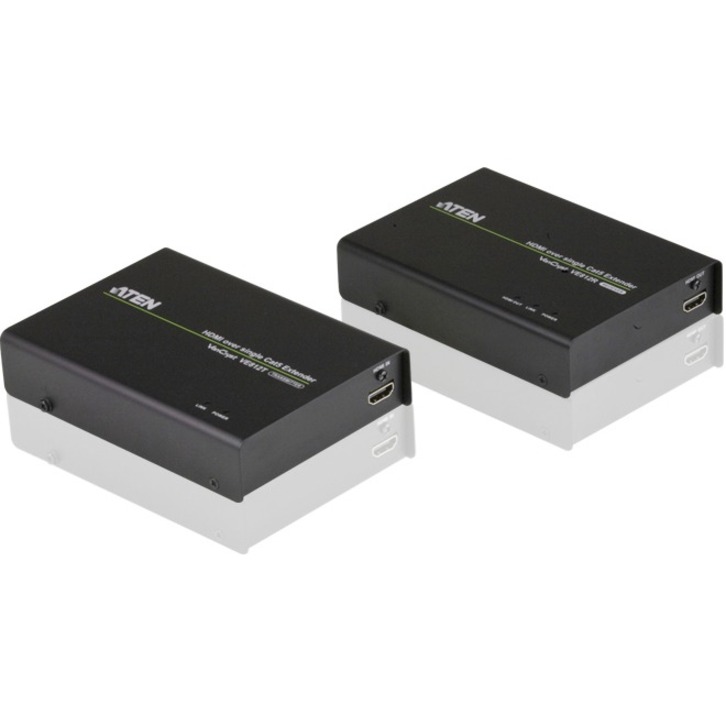

ATEN VE812R Network Switch

ATEN - Network Switches, ATEN, VE812R HDMI Over Single Cat 5 Receiver-TAA Compliant, 1 Output Device, 328.08 ft Range, 1 x Network (RJ-45), 1 x HDMI Out, 4K, 4096 x 2160, Category 5e

Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Need a different version? See all ATEN Parts Wireless Switches

$254.86

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.

ATEN VE812R Network Switch Overview

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.

The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Output Devices Supported:

Maximum Operating Distance:

328.08 ft

Video

Graphics Modes:

Maximum Video Resolution:

4096 x 2160

Interfaces/Ports

Network (RJ-45):

Yes

HDMI Out:

Yes

Number of Network (RJ-45) Ports:

Number of HDMI Outputs:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5e

Power Description

Input Voltage:

5.3 V DC

Physical Characteristics

Product Material:

Metal

Receiver Height:

1.18"

Receiver Width:

4.06"

Length:

5.6"

Receiver Weight (Approximate):

15.17 oz

Miscellaneous

Package Contents:

VE812R HDMI Over Single Cat 5 Receiver
1 x Power Adapter
1 x Mounting Kit
1 x User Instructions

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0672792004568, 4719264640285

UPC: 672792004568

EAN: 0672792004568, 4719264640285

UNSPSC: 52161521
