Connectivity Technology:
Wired
Number of Output Devices Supported:
1
Maximum Operating Distance:
70.87"
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN VE801R Network Switch Overview

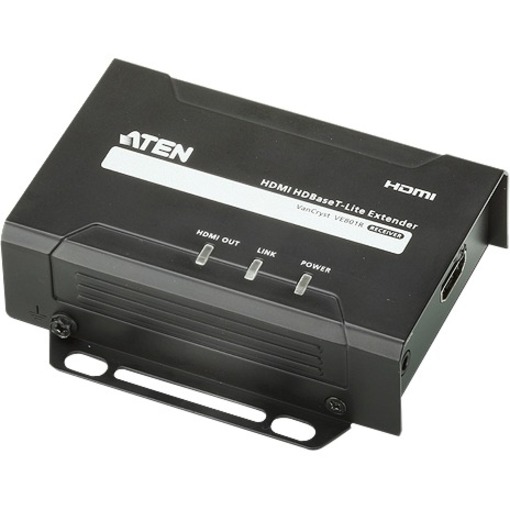

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
Technical Information
Video
Graphics Modes:
4K
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6a
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Material:
Metal
Receiver Height:
1.18"
Receiver Width:
3.43"
Receiver Depth:
3.88"
Form Factor:
Rack-mountable
Receiver Weight (Approximate):
8.47 oz
Miscellaneous
Package Contents:
- VE801R HDMI HDBaseT-Lite Extender
- 1 x Power Adapters
- 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:
Taiwan
Item Numbers
GTIN:
0672792006173
UPC:
672792006173
EAN:
0672792006173
UNSPSC:
