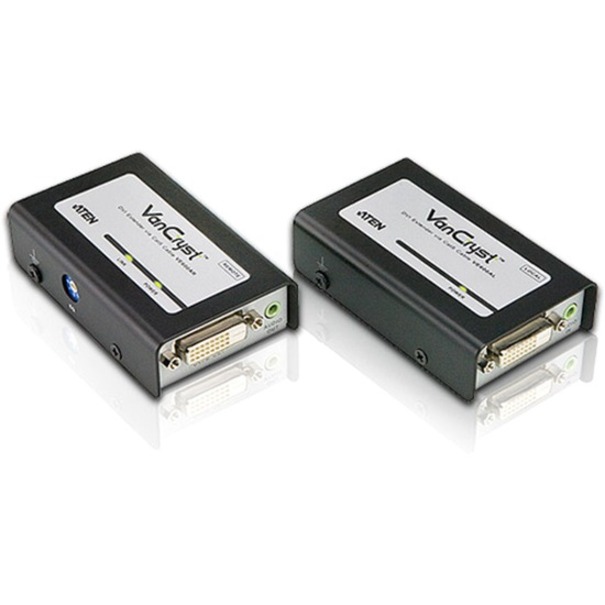

ATEN VE600A Network Switch

ATEN - Network Switches, ATEN, Video Extender, 1 Input Device, 3 Output Device, 200 ft Range, 2 x Network (RJ-45), 1 x DVI In, 1 x DVI Out, WUXGA, 1920 x 1200, Twisted Pair, Category 5e
  • Extends the distance between DVI source and DVI display device
  • Long distance transmission - up to 60 m
  • Uses Cat 5e cable to connect the local and remote units
  • Superior video quality - up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
  • Audio enabled
  • Adjustable EQ compensation control
  • Supports widescreen formats
  • Rack mountable
  • HDCP Compatible
Read More

Need a different version? See all ATEN Parts Wireless Switches

$137.71
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN VE600A Network Switch
ATEN VE600A Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN VE600A Network Switch Overview

The VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p.

The VE 600A uses two Cat5e cables to connect the local and remote units. It will pass video and audio with one cable [TDMS], but the second cable [DDC] must be used if your installation requires EDID information.

There are no drivers or other software to install, simply connect the units to your video source and destination.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
3
Maximum Operating Distance:
200 ft
Video
Graphics Modes:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
DVI In:
Yes
DVI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of DVI Inputs:
1
Number of DVI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5e
Power Description
Input Voltage:
5.3 V DC
Physical Characteristics
Product Material:
Metal
Transmitter Height:
1"
Transmitter Width:
2.20"
Length:
3.6"
Transmitter Weight (Approximate):
1 lb
Miscellaneous
Package Contents:
  • Video Extender
  • 2 x Power Adapters
  • 1 x Rack Mount Kit
  • 1 x User Guide
  • 2 x Grounding Wire
Item Numbers
GTIN: 0672792003004, 4710423777736, 5293152985027
UPC: 672792003004
EAN: 0672792003004, 4710423777736, 5293152985027
UNSPSC: 45111815
