ATEN VE150A Network Switch

ATEN - Network Switches, ATEN, Video Extender-TAA Compliant, 1 Input Device, 2 Output Device, 492.13 ft Range, 2 x Network (RJ-45), 1 x VGA In, 2 x VGA Out, VGA, XGA, SVGA, UXGA, WUXGA, 1920 x 1200, Twisted Pair, Category 5, Rack-mountable
  • Uses Cat 5e cables to connect the local and remote units
  • Supports one local and one remote display
  • Long distance transmission - up to 150 m
  • Adjustable gain control - manually adjust signal strength to compensate for distance
  • Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Built-in 8KV/15KV ESD protection
  • Supports DDC for the local monitor
Read More

Need a different version? See all ATEN Parts Wireless Switches

$126.46
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN VE150A Network Switch
ATEN VE150A Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN VE150A Network Switch Overview

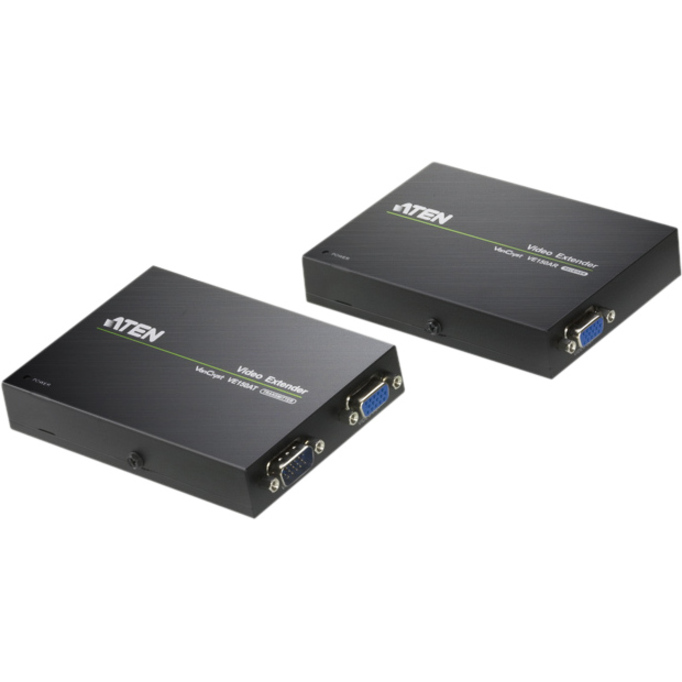

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
2
Maximum Operating Distance:
492.13 ft
Video
Graphics Modes:
  • VGA
  • XGA
  • SVGA
  • UXGA
  • WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
VGA In:
Yes
VGA Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Inputs:
1
Number of VGA Outputs:
2
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Power Description
Input Voltage:
5.3 V DC
Physical Characteristics
Product Material:
Metal
Transmitter Height:
0.89"
Transmitter Width:
3.56"
Length:
5"
Form Factor:
Rack-mountable
Transmitter Weight (Approximate):
8.47 oz
Miscellaneous
Package Contents:
  • 1 x VE150AT Video Extender (Local unit)
  • 1 x VE150AR Video Extender (Remote unit)
  • 2 x Power Adapters
  • 1 x VGA Cable
  • 1 x Mounting Kit
  • 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Item Numbers
GTIN: 0672792003929, 0993242480276, 4710423773851, 4710423778894
UPC: 672792003929, 993242480276
EAN: 0672792003929, 0993242480276, 4710423773851, 4710423778894
UNSPSC: 45111815
