ATEN VE066 Ethernet Switch

Part Number: VE066
Model: Parts
Add to My Shopping List Add to Compare
$45.38
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
65.62 ft

Product Description:

  Network Switches, ATEN, VE066 Video Console/Extender, 1 Input Device, 1 Output Device, 65.62 ft Range, 2 x Network (RJ-45), 1 x DVI In, 1 x DVI Out, WUXGA, 1920 x 1200, Twisted Pair, Category 6
Explore all ATEN Parts Wireless Switches
Add to Quote
ATEN VE066 Ethernet Switch
ATEN VE066 Ethernet Switch

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.
ATEN VE066 Ethernet Switch Overview

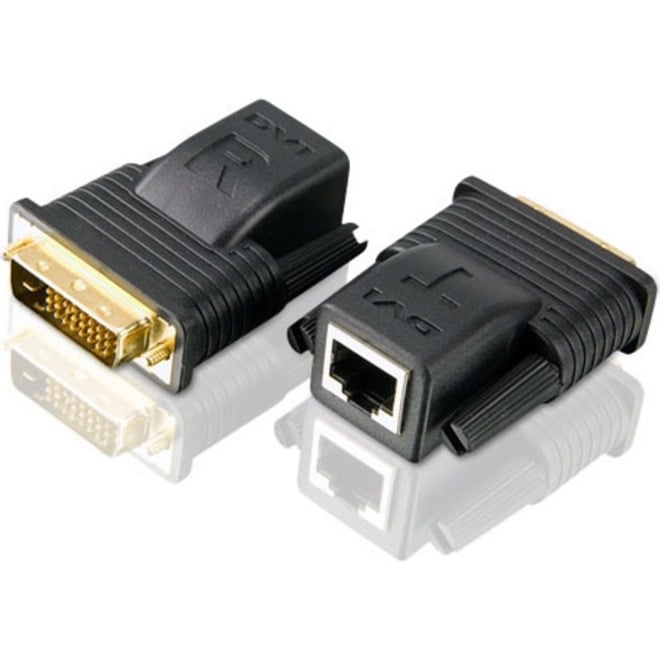

The VE066 Video Console/Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat5e or Cat6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 transmitter connected to the source or the VE066 receiver connected to the display without having to power down the devices.

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
65.62 ft
Video
Graphics Modes:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
DVI In:
Yes
DVI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of DVI Inputs:
1
Number of DVI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Product Material:
Metal
Transmitter Height:
0.85"
Transmitter Width:
1.60"
Transmitter Depth:
2.23"
Transmitter Weight (Approximate):
1.66 oz
Miscellaneous
Package Contents:
  • VE066 Video Console/Extender
  • 1 x User Guide
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0672792002069, 0818213974168, 4710423776531, 4923773181225, 4943793118209
UPC: 672792002069, 784090205704, 818213974168
EAN: 0672792002069, 0818213974168, 4710423776531, 4923773181225, 4943793118209
UNSPSC: 45111815
