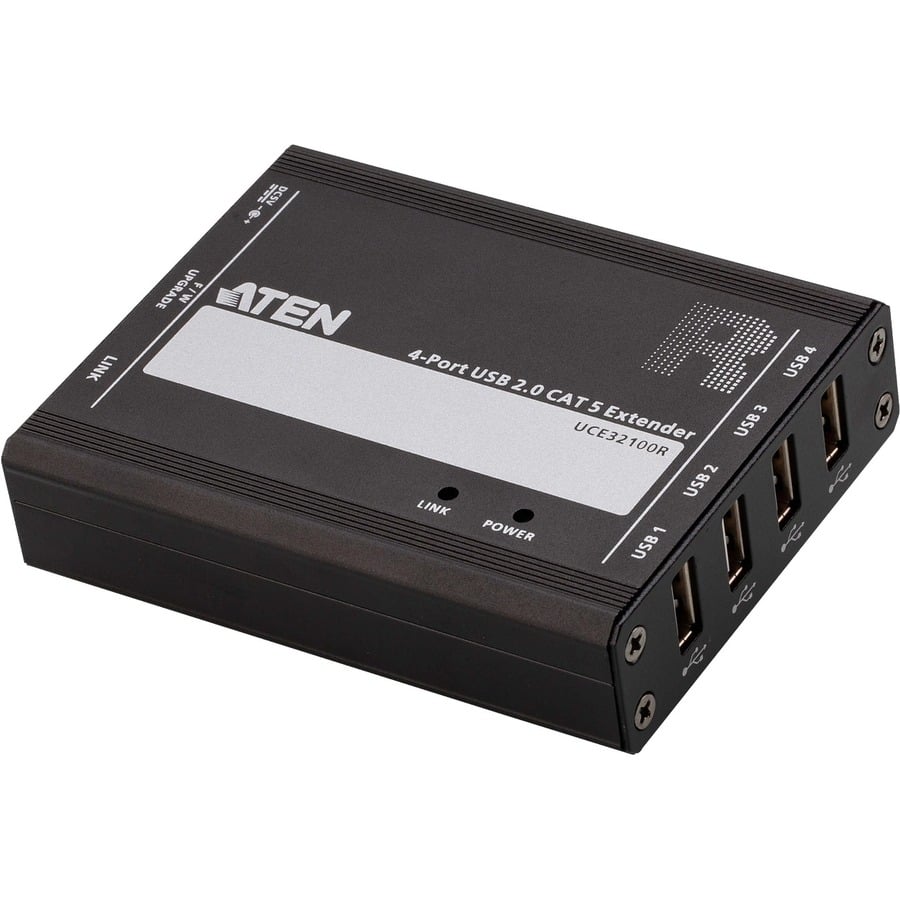

ATEN UCE32100 Accessory

ATEN - Cables, Connectors, and Adapters, ATEN, 4-port USB 2.0 CAT 5 Extender (100m), 3.94" Range, 2 x Network (RJ-45), 7 x USB, Twisted Pair, Category 5, Rack-mountable, Wall Mountable

True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
Supports all USB 2.0 devices up to 480Mbps
USB Lossless - Higher compatibility of remote USB devices
An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
Power supply for remote unit to ensure power delivery to multiple devices at once
Compact size with wall mounting and din rail included for flexible installation
DC jack lock kit included to ensure durable power adapter connection
Supports Windows®, OS X®, and Linux®
Plug-and-play

Need a different version? See all ATEN Parts Wireless Switches

$512.40

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.

ATEN UCE32100 Accessory Overview

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Maximum Operating Distance:

3.94"

Interfaces/Ports

Network (RJ-45):

Yes

USB:

Yes

Number of Network (RJ-45) Ports:

Number of USB Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5

Physical Characteristics

Transmitter Height:

0.96"

Transmitter Width:

Transmitter Depth:

3.11"

Receiver Height:

0.96"

Receiver Width:

Receiver Depth:

3.11"

Form Factor:

Rack-mountable
Wall Mountable

Transmitter Weight (Approximate):

7.41 oz

Receiver Weight (Approximate):

7.41 oz

Miscellaneous

Package Contents:

1 x UCE32100T USB 2.0 CAT 5 Transmitter
1 x UCE32100R USB 2.0 CAT 5 Receiver
1 x USB 2.0 Type-A Male to Type-B Male Cable
1 x Power Adapter
1 x Power Cord
4 x Mounting Kit
2 x Din Rail
2 x DC Jack Lock Kit
2 x Rubber Feet Sets
1 x User Instructions

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Item Numbers

GTIN: 0672792010569

UPC: 672792010569

EAN: 0672792010569

UNSPSC: 45111815
