ATEN KL1516AIM Network Switch

ATEN - Network Switches, ATEN, 16-Port 17in. Dual Rail CAT5 LCD KVM Over the Net-TAA Compliant, 16 Computer(s), 17" LCD, UXGA, 1600 x 1200, 18 x Network (RJ-45), 2 x PS/2 Port, 3 x USB, 1 x VGA, Daisy Chain, Keyboard100 V AC, 240 V AC Input Voltage, 1U High

Need a different version? See all ATEN Parts Wireless Switches

$2,754.40
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN KL1516AIM Network Switch
ATEN KL1516AIM Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN KL1516AIM Network Switch Overview

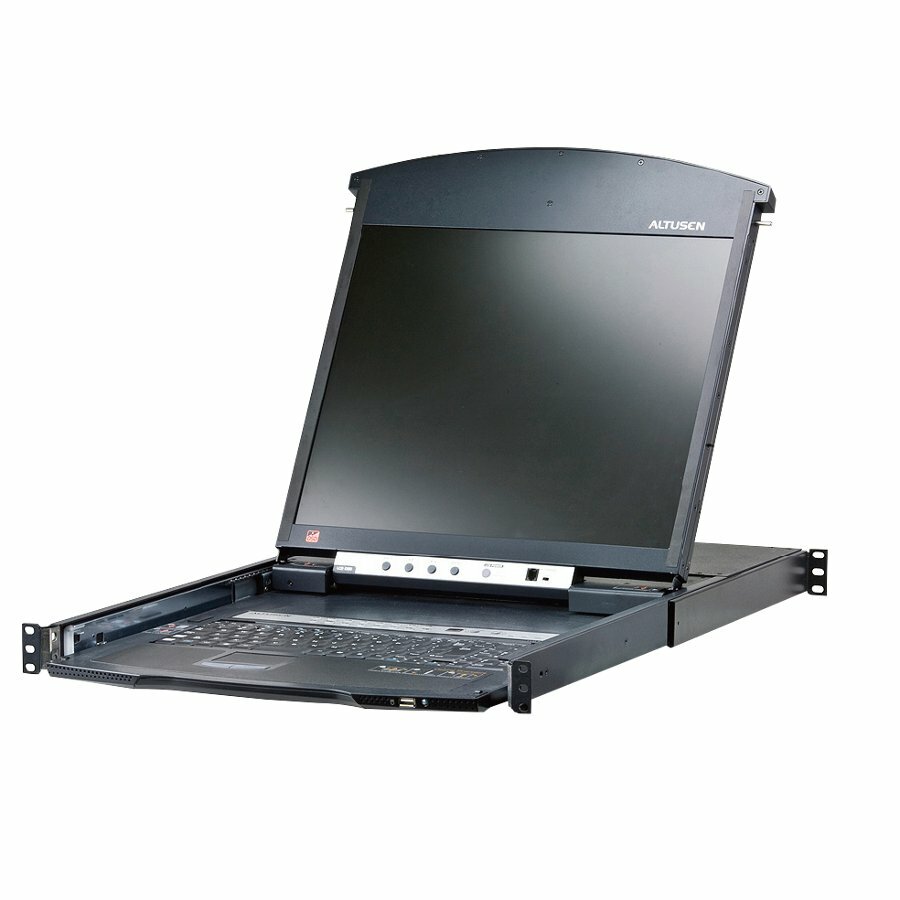

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hide away " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

Technical Information
KVM Switch:
Yes
KVM Technology:
Digital
Number of Computers Supported:
16
Daisy Chain:
Yes
Device Type:
LCD Rack Console
Display & Graphics
Screen Size:
17"
Display Screen Type:
LCD
Screen Mode:
UXGA
Screen Resolution:
1600 x 1200
Input Devices
Keyboard:
Yes
Pointing Device Type:
  • TouchPad
  • Mouse
Interfaces/Ports
Network (RJ-45):
Yes
PS/2 Port:
Yes
USB:
Yes
VGA:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
18
Number of PS/2 Ports:
2
Number of USB Ports:
3
Number of VGA Ports:
1
Power Description
Input Voltage:
  • 100 V AC
  • 240 V AC
Power Consumption:
  • 33 W
  • 34 W
Physical Characteristics
Product Material:
Metal
Height:
1.7"
Width:
18.9"
Weight (Approximate):
35.27 lb
Miscellaneous
Package Contents:
  • 16-Port 17in. Dual Rail CAT5 LCD KVM Over the Net
  • 1 x Power Cord
  • 1 x Standard Rack Mount Kit
  • 1 x Firmware Upgrade Cable
  • 1 x User Instructions
Platform Supported:
  • PC
  • Mac
  • Sun
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0672792401091, 4710423777835, 5311090224999
UPC: 672792401091
EAN: 0672792401091, 4710423777835, 5311090224999
UNSPSC: 43222634
