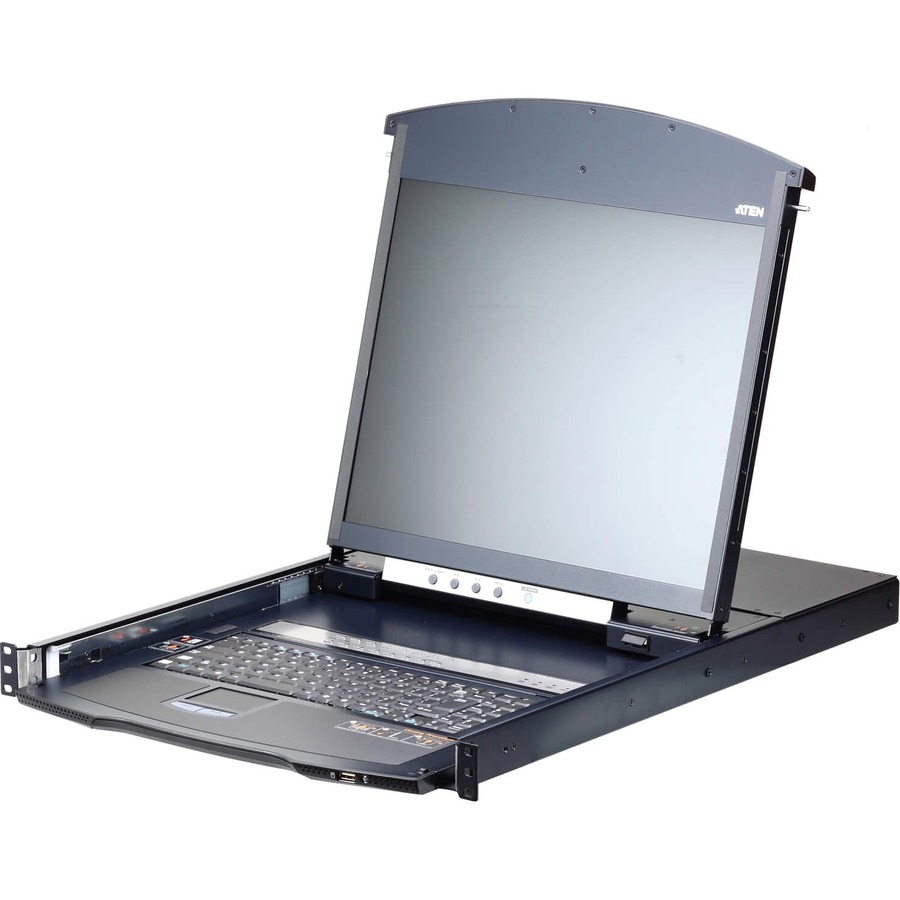

ATEN KL1116VN Network Switch

ATEN - Network Switches, ATEN, 16-Port Cat 5 Dual Rail LCD KVM Over IP Switch 1 Local / 1 Remote User Access-TAA Compliant, 16 Computer(s), 19" LCD, WUXGA, 1920 x 1200, 22 x Network (RJ-45), 2 x USB, 1 x DVI, 1 x VGA, Keyboard, TouchPad, 1U High, Mac, PC, Linux, Sun, Metal
  • High-Grade Security - supports FIPS 140-2 level 1 security standards
  • Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
  • 2x faster virtual media transmission speeds
  • Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
  • Integrated KVM console with 19" LED-backlit LCD monitor in a dual rail housing
  • One bus for local and one bus for remote KVM over IP access
  • Space-saving RJ-45 ports for Cat 5e/6 cable connections
  • KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra Console Ports - manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
  • Supports PS/2, Sun Legacy (13W3) and serial (RS-232) connectivity
Read More

Need a different version? See all ATEN Parts Wireless Switches

$3,924.35
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN KL1116VN Network Switch
ATEN KL1116VN Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN KL1116VN Network Switch Overview

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.

The KL1116VN switches allow local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help manage and control an entire data center, our KL1116VN KVM over IP switches support blade servers and chassis with powerful new features such as Power Association which allows KVM ports to be associated with ATEN PDU power outlets for power management of servers from the KVM switches' user interface.

The KL1116VN KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) and CC2000 Centralized Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines. The CCVSR records all operations on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception.

The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers - allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.

With dual on-board NICs and out-of-band access with external modem support, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.

With ATEN KVM over IP switches, IT administrators can manage their server rooms and data centers from practically anywhere - minimizing travel costs and MTTR (Mean Time to Repair) - ensuring the highest availability of data center services possible.

Technical Information
KVM Switch:
Yes
KVM Technology:
Digital
Number of Computers Supported:
16
Device Type:
LCD Rack Console
Display & Graphics
Screen Size:
19"
Display Screen Type:
LCD
Screen Mode:
WUXGA
Screen Resolution:
1920 x 1200
Input Devices
Keyboard:
Yes
Pointing Device Type:
TouchPad
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
DVI:
Yes
VGA:
Yes
Number of Network (RJ-45) Ports:
22
Number of USB Ports:
2
Number of DVI Ports:
1
Number of VGA Ports:
1
Power Description
Input Voltage Range:
120V AC to 230V AC
Power Consumption:
32.40 W
Physical Characteristics
Product Material:
Metal
Height:
1.7"
Width:
27.6"
Depth:
18.9"
Weight (Approximate):
33.69 lb
Miscellaneous
Package Contents:
  • 1 x KL1116VN Cat 5 Dual Rail LCD KVM Over IP Switch with a Rack Mount Kit
  • 2 x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
  • 1 x Power Cord
  • 1 x User Instructions
Platform Supported:
  • Mac
  • PC
  • Linux
  • Sun
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0672792403866
UPC: 672792403866
EAN: 0672792403866
UNSPSC: 43222634
