ATEN CS1944DP Network Switch

ATEN - Network Switches, ATEN, 4-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch-TAA Compliant, 4 Computer(s), 1 Local User(s), 4096 x 2160, 1 x Network (RJ-45), 8 x USB, Desktop, 10 x DisplayPort
  • One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
  • Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
  • 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Dual-Mode technology (DP++)*
  • Supports MST (Multi-Stream Transport)**
  • Supports Console keyboard emulation / bypass feature
  • Supports Console mouse emulation / bypass feature
  • Independent switching of KVM, USB, and Audio
Read More
$604.20
In Stock
Add to Quote
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN CS1944DP Network Switch Overview

The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

More from the Manufacturer

Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
1
Video
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
8
Number of DisplayPorts:
10
Physical Characteristics
Form Factor:
Desktop
Height:
1.7"
Width:
6.2"
Depth:
13.2"
Weight (Approximate):
3.33 lb
Miscellaneous

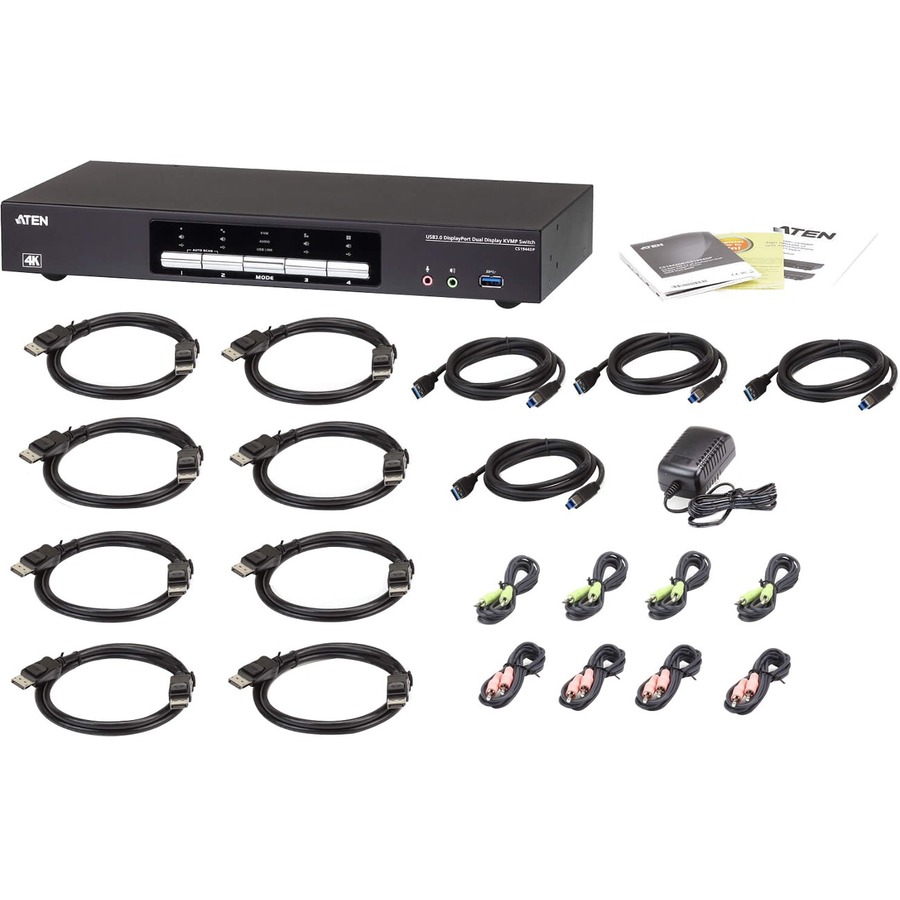

Package Contents:
  • 4-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
  • 8 x DisplayPort 1.2 Cables
  • 4 x USB 3.0 Cables
  • 8 x Audio Cables
  • 1 x Power Adapter
  • 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Item Numbers
GTIN: 0672792007897
UPC: 672792007897
EAN: 0672792007897
UNSPSC: 43211601
