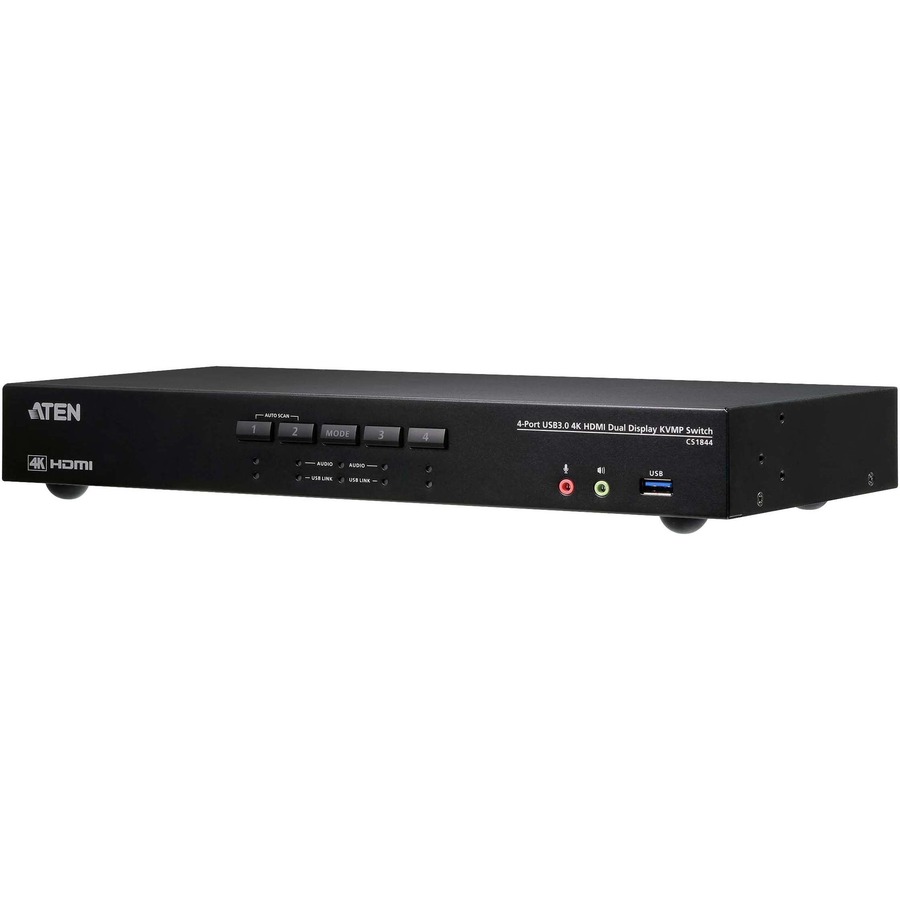

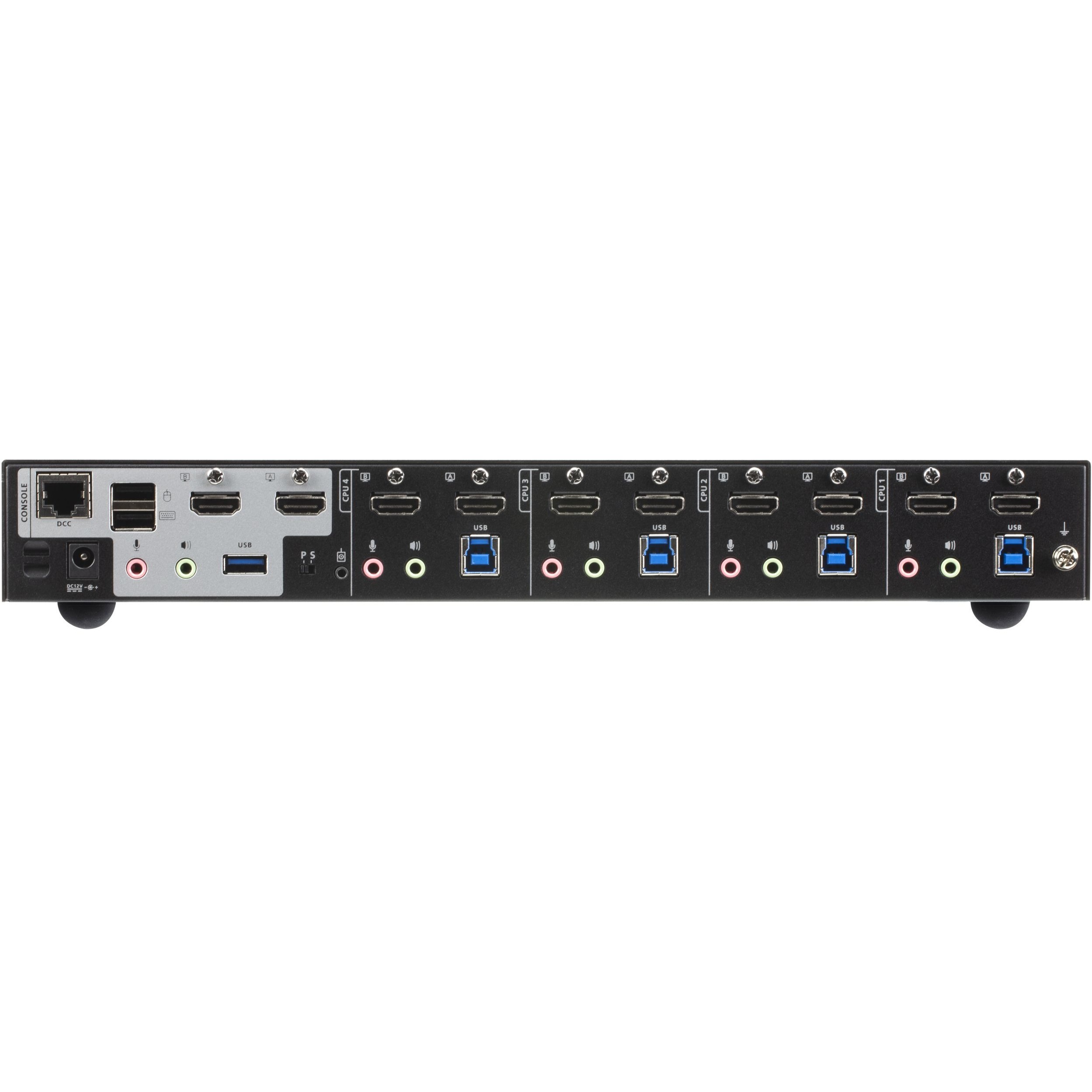

ATEN CS1844 Network Switch

ATEN - Network Switches, ATEN, 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch, 4 Computer(s), 2 Local User(s), 4096 x 2160, 1 x Network (RJ-45), 8 x USB, 10 x HDMI
  • With this KVM Switchbox, avoid the constant switching of cables between sources
  • Connect up to 4 computers to 2 local users
  • Get high-resolution video with impressive clarity, thanks to the 4096 x 2160 resolution.
  • The Built-in USB port enables easy connection with USB-compatible devices
Read More
$854.55
In Stock
Add to Quote
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN CS1844 Network Switch Overview

The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

In addition, with patented ATEN technology - Video DynaSync™, the CS1844 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.

As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
2
Video
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
HDMI:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
8
Number of HDMI Ports:
10
Physical Characteristics
Height:
1.7"
Width:
13.2"
Depth:
6.3"
Weight (Approximate):
3.46 lb
Miscellaneous
Package Contents:
  • 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch
  • 8 x HDMI 2.0 Cables
  • 4 x USB 3.0 Cables
  • 4 x Speaker Cables
  • 4 x Microphone Cables
  • 1 x Power Adapter
  • 1 x Remote Port Selector
  • 1 x User Instructions
Country of Origin:
Taiwan
Item Numbers
GTIN: 0672792011825
UPC: 672792011825
EAN: 0672792011825
UNSPSC: 43211601
