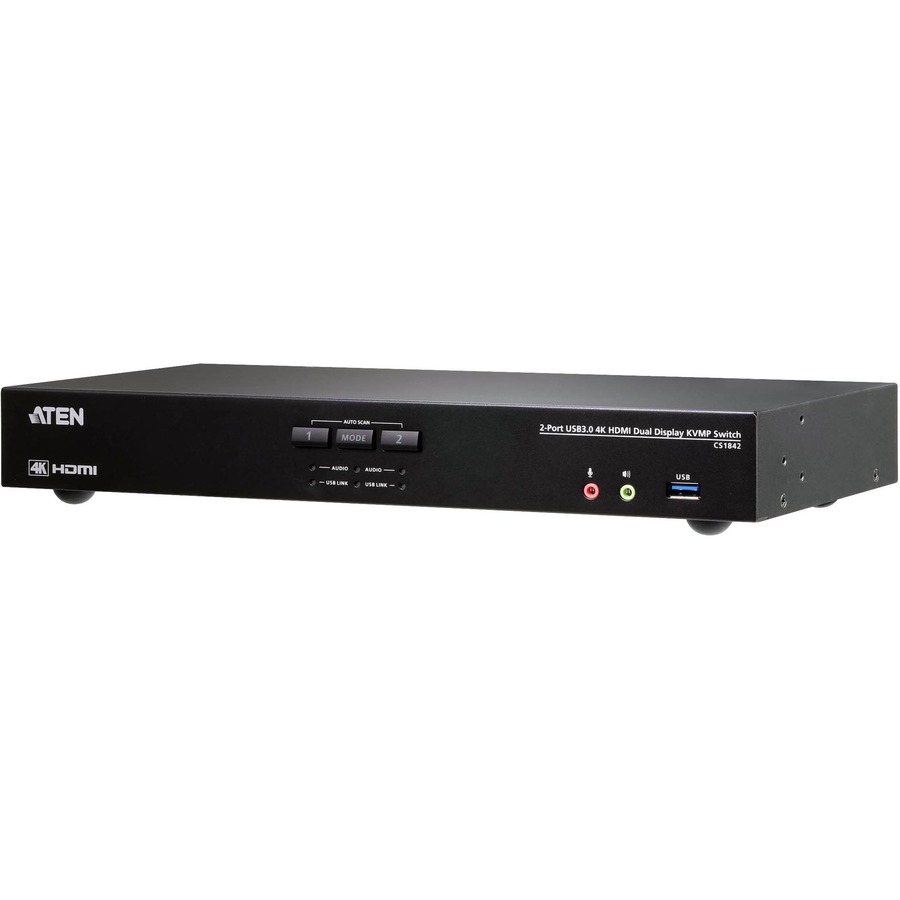

ATEN CS1842 Network Switch

ATEN - Network Switches, ATEN, 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch, 2 Computer(s), 2 Local User(s), 4096 x 2160, 1 x Network (RJ-45), 6 x USB, 6 x HDMI
  • One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands2
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports console keyboard emulation / bypass feature
  • Supports console mouse emulation / bypass feature
  • Independent switching of KVM, USB peripheral, and stereo audio focus
  • Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
Read More

Need a different version? See all ATEN Parts Wireless Switches

$525.51
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ATEN CS1842 Network Switch
ATEN CS1842 Network Switch
ATEN CS1842 Network Switch ATEN CS1842 Network Switch
ATEN Parts Wireless Switch Model Overview
Parts and accessories from ATEN.
ATEN CS1842 Network Switch Overview

The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

In addition, with patented ATEN technology - Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.

As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

Technical Information
Number of Computers Supported:
2
Number of Local Users Supported:
2
Video
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
HDMI:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
6
Number of HDMI Ports:
6
Physical Characteristics
Height:
1.7"
Width:
13.2"
Depth:
6.3"
Weight (Approximate):
3.53 lb
Miscellaneous
Package Contents:
  • 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch
  • 4 x HDMI 2.0 Cables
  • 2 x USB 3.0 Cables
  • 2 x Speaker Cables
  • 2 x Microphone Cables
  • 1 x Power Adapter
  • 1 x Remote Port Selector
  • 1 x User Instructions
Country of Origin:
Taiwan
Item Numbers
UNSPSC: 43211601
