ATEN CS1734B Network Switch

ATEN - Network Switches, ATEN, CS1734B 4-Port USB KVMP Switch, 4 x 1, 4 x HD-15 Keyboard/Mouse/Video

4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls four computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access - ideal for IP phone users
Independent switching of KVM, USB, and Audio focus
Superior video quality; 2048 x 1536; DDC2B
Supports widescreen resolutions

Need a different version? See all ATEN Parts Wireless Switches

$201.40

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.

ATEN CS1734B Network Switch Overview

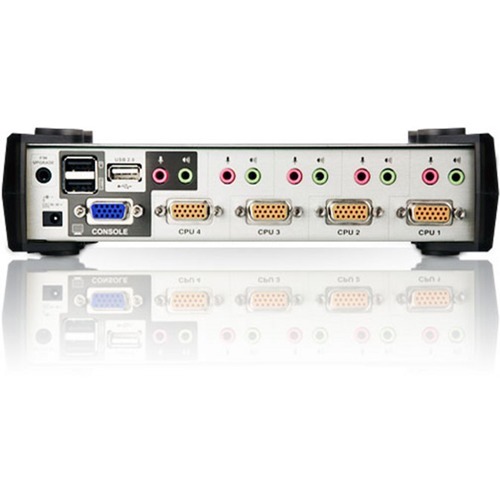

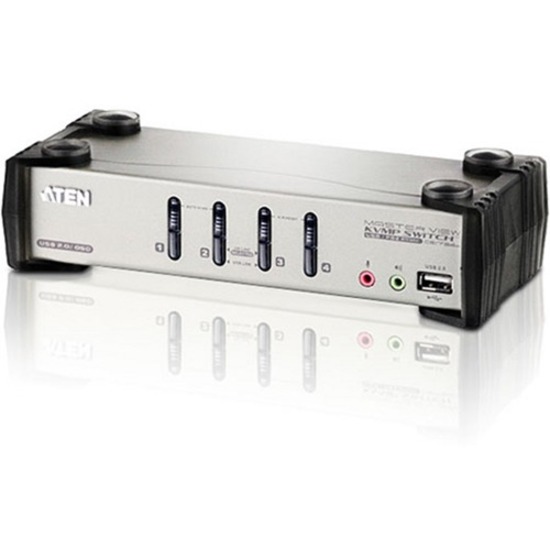

The CS1734B is a four port KVMP switch combined with a two-port USB 2.0 hub. As a KVM switch, It allow users to access four computers from a single keyboard, monitor, and mouse console. The CS1734B improves the previous design by given the user a choice of either transferring keyboard and mouse data to computer via a usb connection. If usb connection is used integrated two port usb hub is is available for each computer to access any peripherals connected to the hub on a one at a time.

Detailed Specs

Technical Information

Number of Computers Supported:

Video

Graphic Mode:

QXGA

Maximum Video Resolution:

2048 x 1536

Interfaces/Ports

USB:

Yes

Number of USB Ports:

Power Description

Input Voltage:

5.3 V DC

Physical Characteristics

Height:

2.2"

Width:

8.3"

Depth:

3.4"

Weight (Approximate):

1.72 lb

Miscellaneous

Package Contents:

CS1734B 4-Port USB KVMP Switch
4 x Custom USB KVM Cables
USB-to-PS/2 keyboard and Mouse Converter
Firmware Upgrade Cable
Power Adapter
User Manual
Quick Start Guide
2 x OSD/Hotkey Sticker

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0672792112256, 0777786326326, 0792285559075, 0993243500805, 4710423775053

UPC: 672792112256, 777786326326, 792285559075, 993243500805

EAN: 0672792112256, 0777786326326, 0792285559075, 0993243500805, 4710423775053

UNSPSC: 43211601
