ATEN CE770 Network Switch

ATEN - Network Switches, ATEN, Proxime CE770 KVM Console/Extender-TAA Compliant, 1 Computer(s), 1 Local User(s), 1 Remote User(s), 984.25 ft Range, WUXGA, 1920 x 1200 Maximum Video Resolution, 2 x Network (RJ-45), 4 x USB, 2 x VGA, Proprietary Interface, Rack-mountable

Local and Remote Units connect at distances up to 300 m using Cat 5e cable
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
Sun/Mac keyboard support and emulation
Audio Enabled - supports stereo speakers and microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

Need a different version? See all ATEN Parts Wireless Switches

$622.45

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

ATEN Parts Wireless Switch Model Overview

Parts and accessories from ATEN.

ATEN CE770 Network Switch Overview

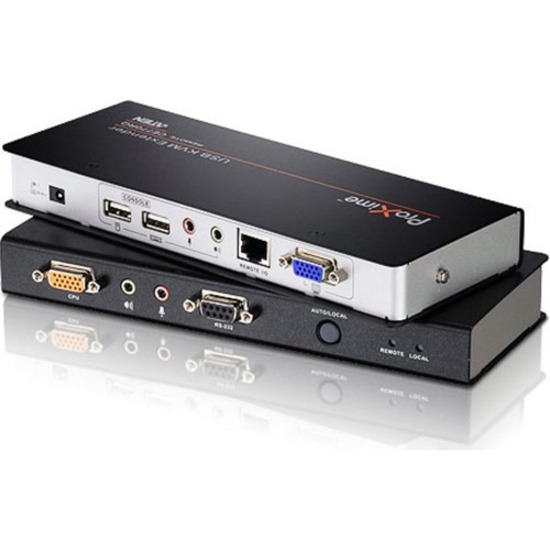

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
