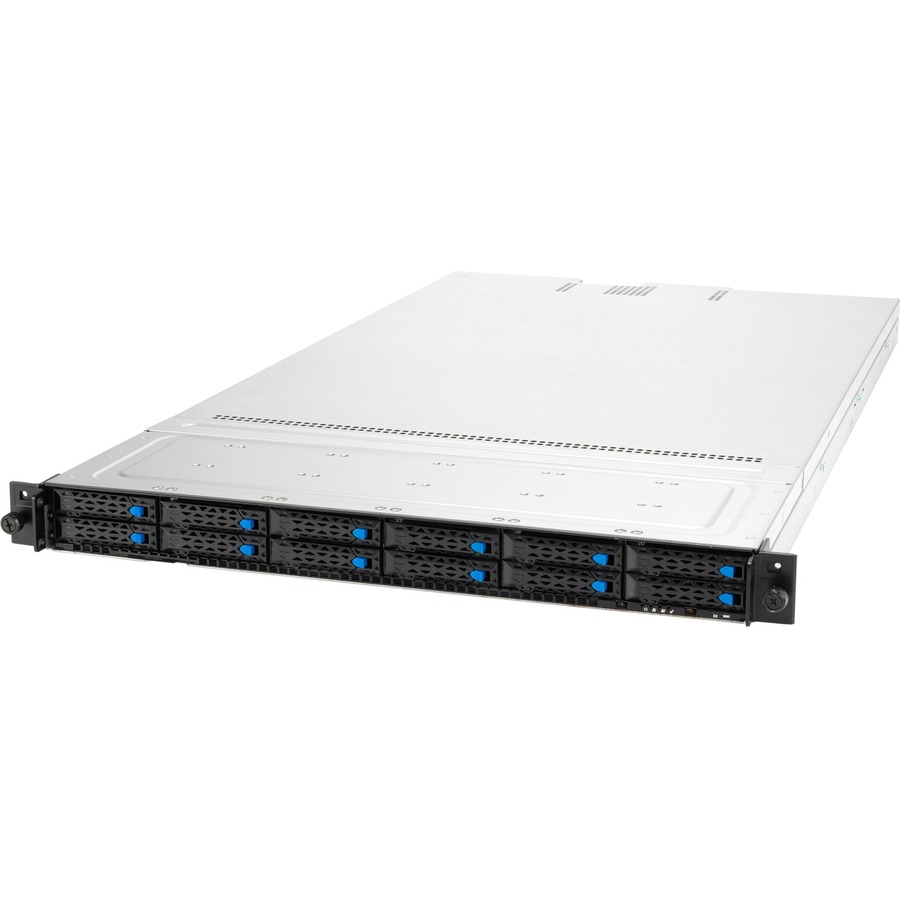

Asus RS500A-E11-WOCPU006Z Server
Asus Parts Laptop Model Overview
RS500A-E11-RS12U | AMD EPYC™ 7003 1U single-socket server that supports up to 16 DIMM, GPU, 12 NVMe, 3 PCIe 4.0 slots, OCP 3.0, M.2 and ASUS ASMB10-iKVM
Key Features
- Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
- Up to 12 all-flash NVMe drives on front panel and four drives on middle panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Air cooling with heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
- New tool-less design for easy serviceability
AMD EPYC 7003 Series Processors
The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS500A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
More Storage in Middle Bay
RS500A-E11-RS12U features unique design of additional four 2.5" internal storage supporting NVMe and SATA in middle bay, allowing up to 16 all-flash NVMe drives for different configurations.
Scalable Storage Solution
ASUS RS500A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
Enhanced Security
ASUS RS500A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS500A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
