Asus RNUC15JNK9X28AAU Desktop PC
Part Number:
RNUC15JNK9X28AAU
Model:
Parts
Asus Parts Laptop Model Overview
Products and parts from ASUS.

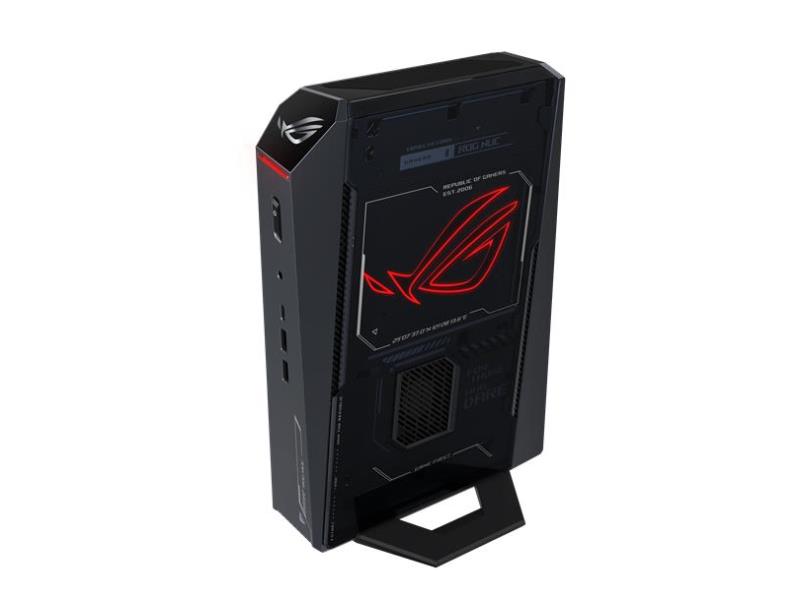

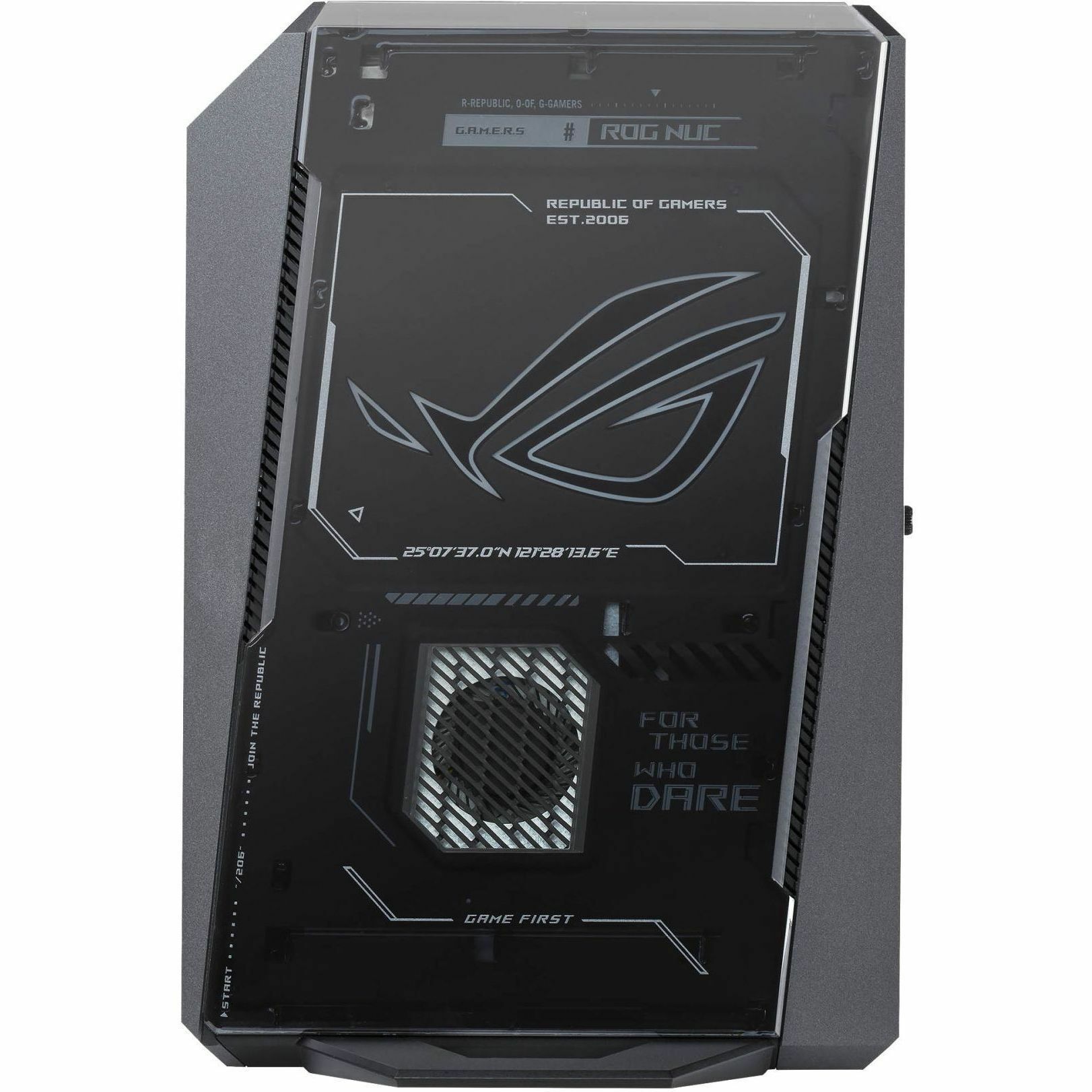

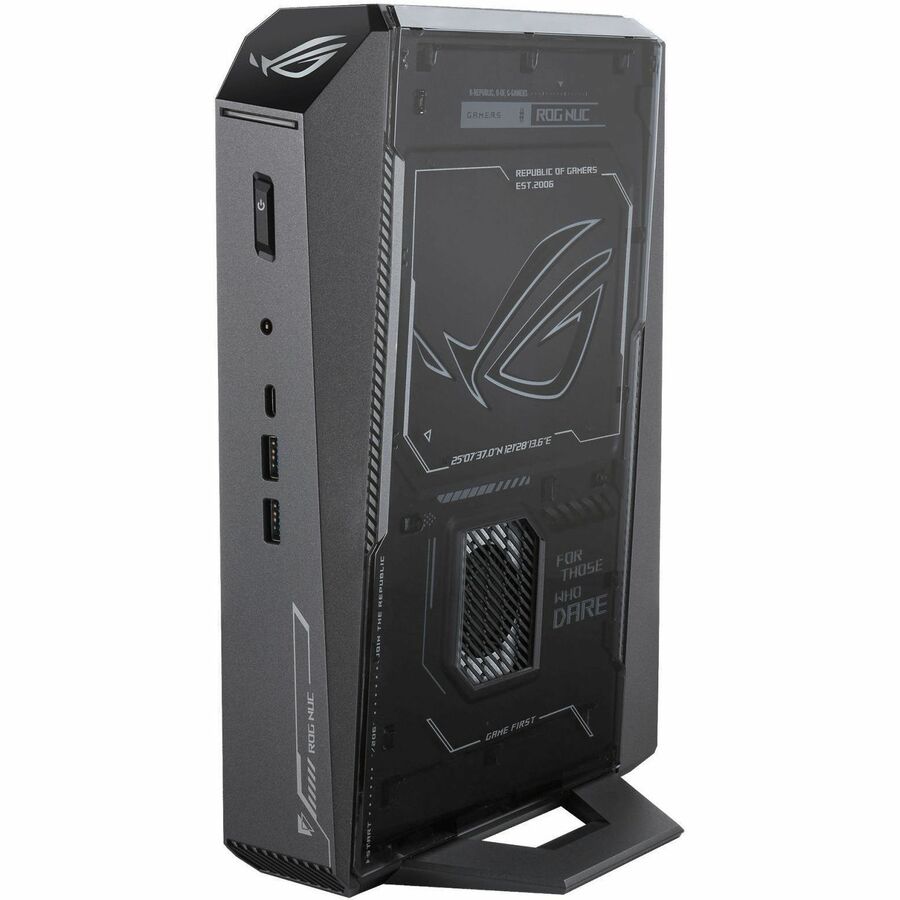

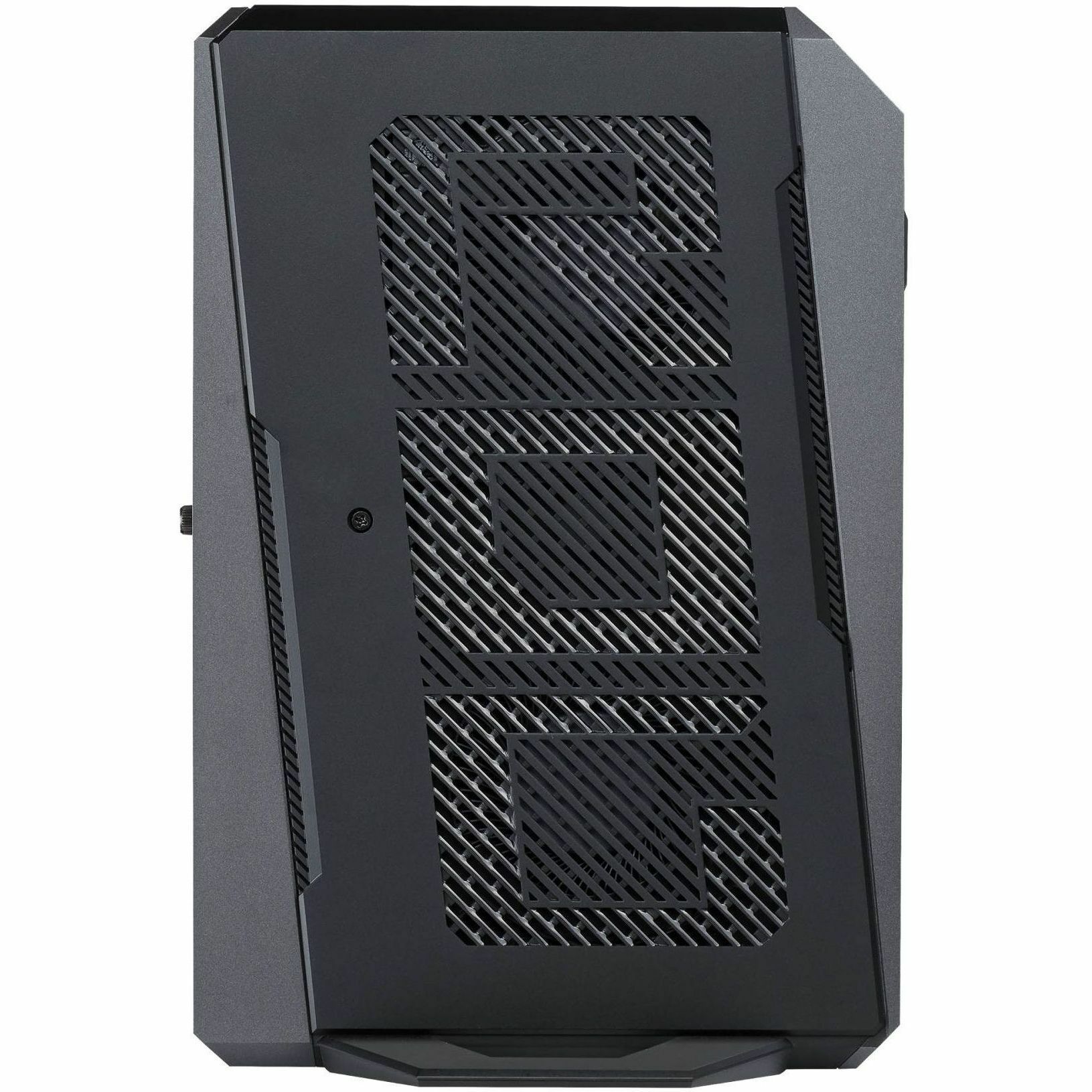

Asus RNUC15JNK9X28AAU Desktop PC Overview
ROG NUC (2025) | Gaming Redefined | Power Meets Precision
Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for five 4K displays, this compact powerhouse delivers unprecedented performance.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 9
Processor Model:
275HX
Processor Core:
Tetracosa-core (24 Core)
Processor Threads:
24
Processor Speed:
2.70 GHz
Maximum Turbo Speed:
5.40 GHz
Processor Socket:
Socket BGA-2114
L2 Cache:
40 MB
L3 Cache:
36 MB
64-bit Processing:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
32 GB
Memory Technology:
DDR5 SDRAM
Memory Standard:
DDR5-5600/PC5-44800
Memory Speed:
6400 MHz
Memory Configuration:
2 x 16GB
Total Number of Memory Slots:
2
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
2 TB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Controllers
Controller Type:
NVMe
Display & Graphics
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
GeForce RTX 5080
Graphics Memory Capacity:
Up to 16 GB
Graphics Memory Technology:
GDDR7
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
2.5 Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.4
I/O Expansions
Number of M.2 Interfaces:
2

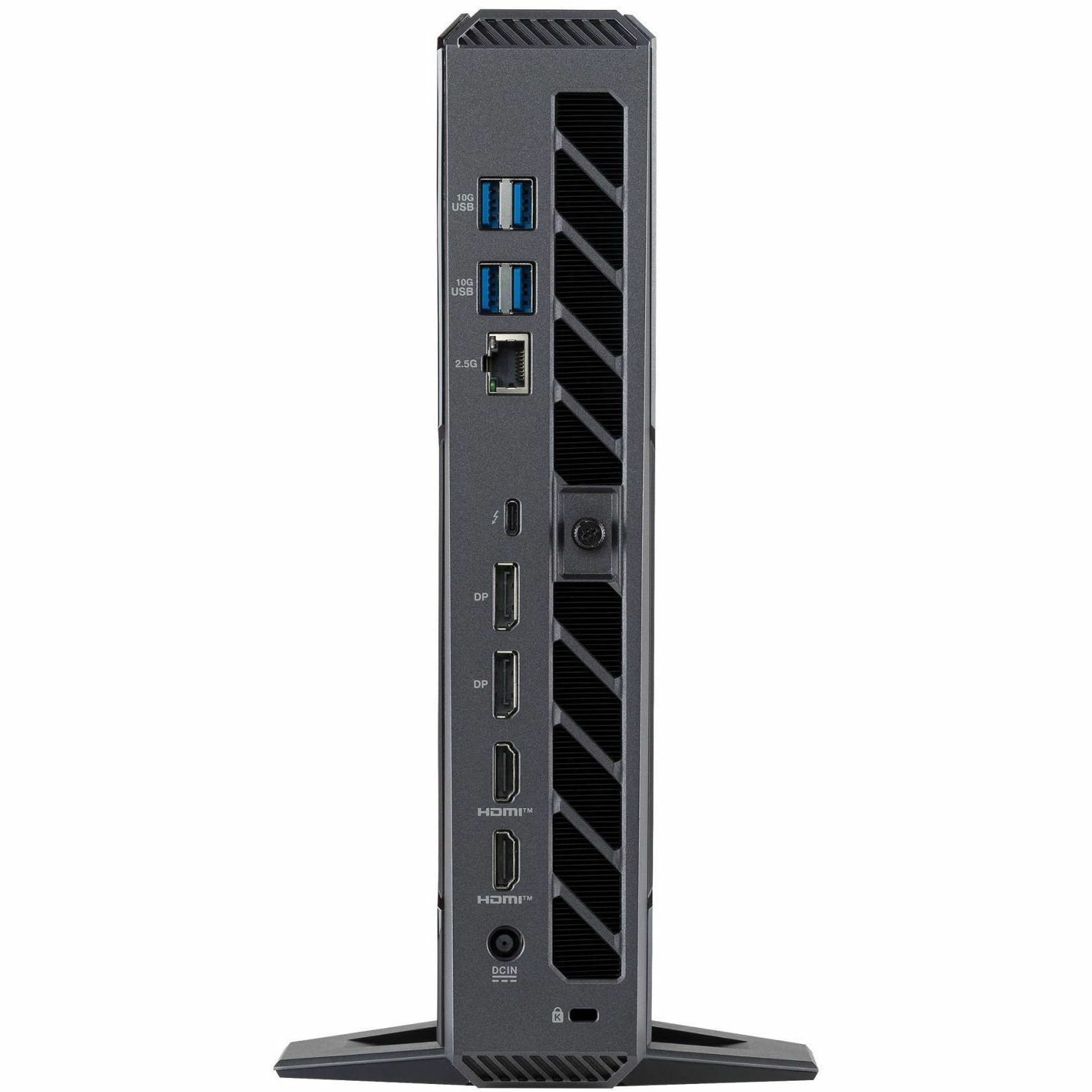

Interfaces/Ports
HDMI (Rear):
Yes
Total Number of USB Ports:
7
Number of USB 3.2 Gen 2 Ports:
6
USB Type-C (Front):
Yes
USB Type-C Detail:
1 x USB 3.2 Type-C
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of DisplayPort Outputs (Rear):
2
DisplayPort (Rear):
Yes
Number of Thunderbolt 4 Ports:
1
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Home
Physical Characteristics
Form Factor:
Mini PC
Height:
2.2"
Width:
11.1"
Depth:
7.4"
Weight (Approximate):
6.88 lb
Miscellaneous
Package Contents:
- NUC Gaming Desktop Computer
- Power Cord
- AC Adapter
- Safety/Caution/Regulatory Insert
- Warranty Card
Features:
- Tool-less Access
- Security Slot
- DLSS 4.0 Technology
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0197105993945
UPC:
197105993945
EAN:
0197105993945
UNSPSC:
43211507
