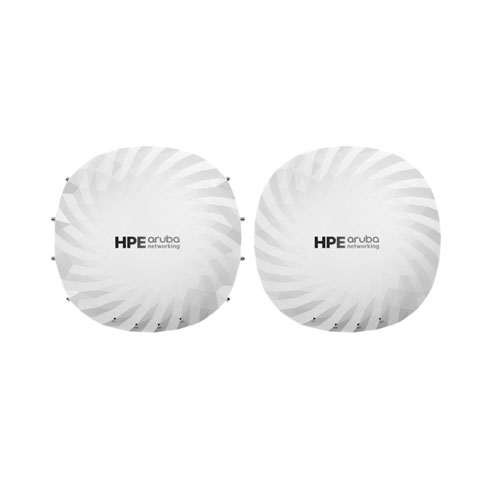

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G90A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What Wi-Fi standard does the HPE Aruba S1G90A support and what are the maximum throughput speeds?
The HPE Aruba S1G90A is a Wi-Fi 7 (802.11be) access point with concurrent 4×4 MIMO on three bands (2.4 GHz, 5 GHz, and 6 GHz), delivering up to 18.7 Gbps aggregate throughput in standard tri-band mode. In dual-6 GHz mode, the access point can achieve peak throughput of 28.8 Gbps, making it ideal for high-density deployments requiring extreme bandwidth. We offer this next-generation AP for organizations upgrading from older Wi-Fi 6 infrastructure.
What IoT and location services are integrated into the S1G90A?
The S1G90A includes built-in Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for seamless IoT device connectivity, plus GNSS L1/L5 receiver and barometric sensors for precise indoor mapping and location services. These integrated radios eliminate the need for separate IoT gateways in many deployments. Contact us today to discuss how these capabilities support your IoT and asset-tracking initiatives.
How does the S1G90A handle network connectivity and what security features are included?
The access point features two 10 GbE Smart Rate ports with PoE-PD support (802.3af/at/bt) and MACsec encryption for secure backhaul connectivity. Security is comprehensive with WPA3, Enhanced Open, MACsec, and TPM 2.0 support, ensuring enterprise-grade protection for wireless and wired traffic. Available from us with full technical support for deployment in security-sensitive environments.
What management and provisioning capabilities does the S1G90A offer?
The S1G90A features cloud-native zero-touch setup and AI-driven provisioning through HPE Aruba's OS-10 and Central platforms with integrated AIOps. ClientMatch and AirMatch technologies automate RF optimization and band steering to ensure optimal performance without manual tuning. We offer comprehensive management support to help you deploy and maintain these intelligent access points at scale.
What are the environmental operating specifications and physical dimensions of the S1G90A?
The S1G90A operates reliably in environments from 0°C to 50°C with 5–95% relative humidity, making it suitable for both indoor campuses and outdoor deployments. The access point measures 260×260×57 mm and weighs 1.53 kg, providing a compact form factor that fits standard mounting infrastructure. Contact us today for guidance on deployment in your specific environmental conditions.
Is the HPE Aruba S1G90A suitable for high-density wireless deployments and what certifications does it hold?
Yes, the S1G90A is purpose-built for high-density environments with its tri-band coexistence filtering, 12 total spatial streams, and advanced RF optimization features that prevent interference and maximize throughput. The access point holds Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 certifications, ensuring compliance with global regulatory and safety standards. Visit barcodesinc.com to order or contact our team for enterprise deployment planning.
The HPE Aruba S1G90A Wireless Access Points is also known as
HPE-S1G90A
