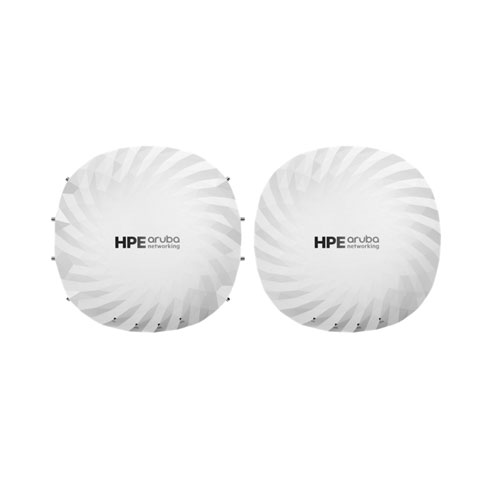

HPE Aruba S1G89A Wireless Access Points

The HPE Aruba S1G89A delivers up to 18.7 Gbps aggregate throughput in standard tri-band mode (2.4 GHz, 5 GHz, and 6 GHz), with the capability to upgrade to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This next-generation Wi-Fi 7 performance is achieved through concurrent 4×4 MIMO on all three bands, supporting up to 12 total spatial streams. We offer this access point as part of our comprehensive wireless networking solutions for enterprise deployments.

Yes, the S1G89A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support, along with a built-in GNSS L1/L5 receiver and barometric sensor for precise indoor mapping and location tracking. These capabilities enable organizations to deploy location-aware applications and IoT ecosystems on a single access point infrastructure. Contact us today to learn how we can integrate these advanced features into your wireless deployment.

The S1G89A incorporates enterprise-grade security including WPA3 encryption, Enhanced Open standards, MACsec support for port-level security, and a TPM 2.0 chip for secure credential storage and management. The dual 10 GbE Smart Rate ports with MACsec support ensure secure backhaul connectivity between access points and the network core. Available from us with full technical support for security implementation and compliance verification.

The S1G89A features cloud-native zero-touch provisioning through HPE Aruba's OS-10 and Central management platforms, combined with AI-driven ClientMatch and AirMatch technologies that automatically optimize RF performance and client connectivity. These intelligent provisioning and tuning capabilities dramatically reduce deployment time and ongoing maintenance overhead compared to manual configuration. We offer comprehensive setup and support services to ensure your deployment maximizes these automation benefits.

The S1G89A features two 10 GbE Smart Rate ports supporting PoE Power Delivery (802.3af/at/bt classes 3–6) or direct 12 V DC input, with maximum power consumption of 126 watts. The dual 10 GbE ports with MACsec support provide redundant, high-speed backhaul connectivity for mission-critical deployments. Visit barcodesinc.com or contact us today to discuss power architecture and port configuration for your specific network requirements.

The S1G89A operates reliably in temperatures from 0°C to 50°C with humidity levels from 5% to 95% relative humidity, making it suitable for diverse indoor and outdoor campus environments. The access point holds certifications from Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1, ensuring compliance with global safety and wireless standards. We can provide detailed certification documentation and environmental specifications to support your procurement and deployment planning.
