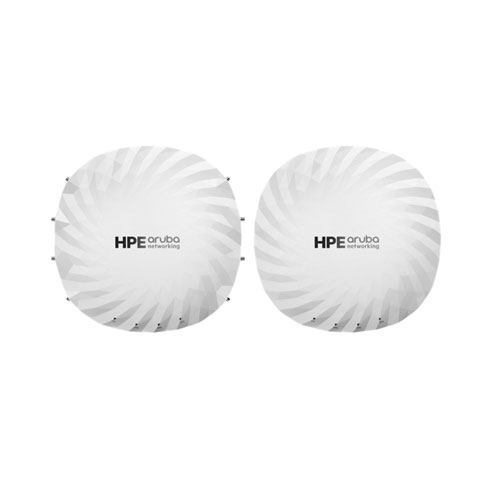

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G88A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S1G88A access point?
The HPE Aruba S1G88A delivers up to 18.7 Gbps aggregate throughput across its tri-band configuration (2.4 GHz, 5 GHz, and 6 GHz), and can scale to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This extreme performance is achieved through concurrent 4×4 MIMO on all three bands with Wi-Fi 7 (802.11be) multilink and 4K QAM technology. We offer this next-generation access point for enterprises requiring maximum wireless capacity and reliability.
Does the HPE Aruba S1G88A support IoT and location services?
Yes, the S1G88A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT connectivity, plus GNSS L1/L5 receiver and barometric sensors for precise indoor mapping and location services. These built-in capabilities enable organizations to deploy location-aware applications and IoT device management without additional hardware. Contact us today to discuss how we can integrate this multi-protocol support into your wireless infrastructure.
What network connectivity options are available on the S1G88A?
The access point features two 10 GbE Smart Rate ports with MACsec support for secure, high-speed backhaul connectivity, both capable of receiving power via PoE (802.3af/at/bt classes 3–6) or 12 V DC input. The dual 10 GbE ports with redundancy ensure uninterrupted network connectivity and eliminate single points of failure in your deployment. We offer complete installation support and can help you design the optimal network topology for your facility.
What security features does the HPE Aruba S1G88A provide?
The S1G88A implements enterprise-grade security including WPA3, Enhanced Open authentication, MACsec encryption on network ports, and TPM 2.0 for secure credential storage and device integrity. These multi-layered security controls protect against both wireless and wired network threats while meeting compliance requirements for sensitive environments. Available from us with full technical support for security configuration and best practices.
How does the S1G88A simplify deployment and ongoing management?
The access point features cloud-native zero-touch setup and AI-driven provisioning that eliminates manual configuration, while ClientMatch and AirMatch technologies automatically optimize RF performance and band selection without administrator intervention. The device integrates with HPE Aruba OS-10 and Central management platforms with AIOps capabilities for intelligent monitoring and troubleshooting. Visit barcodesinc.com to learn how we support rapid, scalable deployments of these intelligent access points.
What environmental conditions and physical specifications should I consider for the S1G88A?
The S1G88A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5–95% RH, making it suitable for diverse indoor and outdoor environments. The compact form factor measures 260×260×57 mm and weighs 1.53 kg, allowing flexible mounting options in ceilings, walls, or outdoor locations. The device meets Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 certifications, ensuring safety and regulatory compliance across global deployments. Contact us today for site assessment and installation planning.
