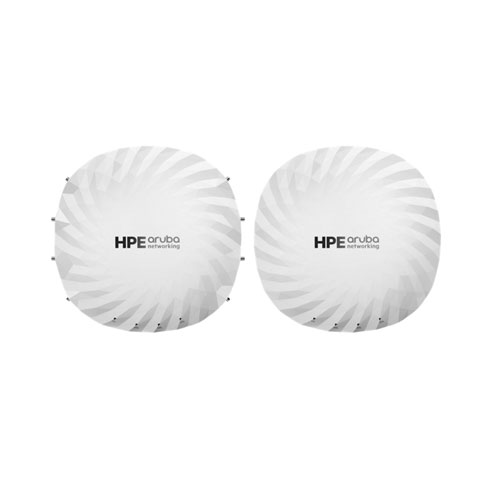

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G87A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S1G87A access point?
The HPE Aruba S1G87A delivers up to 18.7 Gbps aggregate throughput in tri-band mode (2.4 GHz, 5 GHz, and 6 GHz), with the capability to upgrade to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This Wi-Fi 7 access point achieves these speeds through concurrent 4×4 MIMO on all three bands, supporting up to 12 total spatial streams.
Does the S1G87A support IoT connectivity and location services?
Yes, the S1G87A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT connectivity. It also features a GNSS L1/L5 receiver and barometric sensor, enabling precise indoor mapping and location-based services for enterprise deployments.
What network ports and power options does the S1G87A offer?
The S1G87A provides two 10 GbE Smart Rate ports with MACsec support for high-speed backhaul connectivity. It supports flexible power input via 12 V DC or Power-over-Ethernet (PoE) with support for IEEE 802.3af, at, and bt classes (3–6), making it compatible with standard enterprise power infrastructure.
How does the S1G87A simplify deployment and network management?
The S1G87A features cloud-native zero-touch setup and AI-driven provisioning through HPE Aruba's OS-10 and Central management platforms with AIOps capabilities. ClientMatch and AirMatch technologies automatically optimize RF performance, while tri-band coexistence filtering ensures optimal band separation without manual tuning.
What security features does the HPE Aruba S1G87A include?
The S1G87A implements enterprise-grade security including WPA3, Enhanced Open standards, MACsec encryption on network ports, and TPM 2.0 for secure credential storage. These features ensure encrypted wireless communications and protected backhaul connectivity for sensitive enterprise environments.
What are the environmental operating conditions and physical specifications for the S1G87A?
The S1G87A is rated for operating temperatures between 0°C and 50°C with humidity tolerance of 5–95% RH, making it suitable for diverse indoor and outdoor campus environments. The compact form factor measures 260×260×57 mm and weighs 1.53 kg, allowing flexible mounting options in various facility types.
