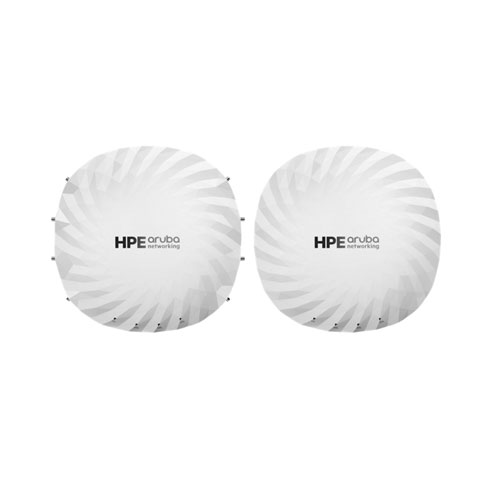

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G86A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S1G86A access point?
The HPE Aruba S1G86A delivers up to 18.7 Gbps aggregate throughput across its tri-band configuration (2.4 GHz, 5 GHz, and 6 GHz), and can be upgraded to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This next-generation Wi-Fi 7 performance is achieved through concurrent 4×4 MIMO on all three bands, supporting up to 12 total spatial streams. We offer this access point as part of our comprehensive wireless networking solutions for enterprise deployments.
Does the S1G86A support IoT connectivity and location services?
Yes, the S1G86A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support, along with GNSS L1/L5 receiver and barometric sensors for precise indoor mapping and location tracking. These built-in capabilities enable seamless integration with IoT devices and location-based applications without requiring external hardware. Contact us today to learn how we can help you deploy these advanced connectivity features in your facility.
What network connectivity options does the S1G86A provide?
The S1G86A features two 10 GbE Smart Rate ports with MACsec security support, providing redundant high-speed uplink connectivity with Power-over-Ethernet (PoE) support for classes 3–6. The dual 10 GbE ports ensure uninterrupted connectivity and enable flexible network architecture for enterprise campus environments. Available from us with full technical support for integration into your existing infrastructure.
How does the S1G86A simplify deployment and network management?
The S1G86A features cloud-native zero-touch provisioning and AI-driven RF tuning through ClientMatch and AirMatch technologies, which automate access point provisioning and optimize radio frequency performance without manual intervention. Integration with HPE Aruba's OS-10 and Central management platforms with AIOps capabilities provides real-time monitoring and intelligent network optimization. Visit barcodesinc.com to explore our managed deployment services for these advanced access points.
What security features are built into the S1G86A?
The S1G86A incorporates WPA3 encryption, Enhanced Open authentication, MACsec for port-level security, and TPM 2.0 for secure credential storage and device integrity verification. These multi-layered security features protect against evolving wireless threats while maintaining compliance with enterprise security standards. Contact us today for guidance on implementing comprehensive security policies across your wireless network.
What are the environmental operating specifications for the S1G86A?
The S1G86A operates reliably in temperatures ranging from 0°C to 50°C with humidity levels between 5–95% RH, making it suitable for diverse campus and indoor environments. The access point measures 260×260×57 mm and weighs 1.53 kg, with certifications including Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 compliance. We offer these access points with full technical specifications and environmental compatibility documentation available from us.
