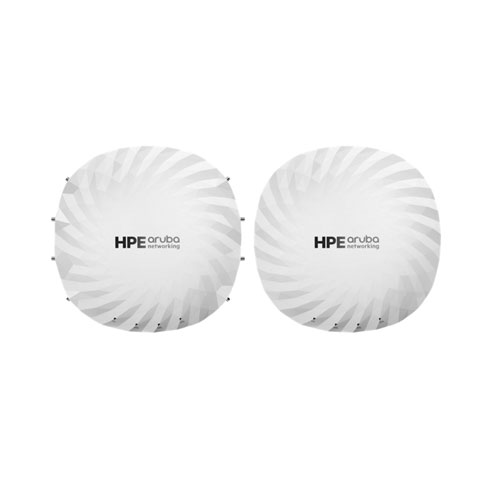

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G83A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S1G83A access point?
The HPE Aruba S1G83A delivers up to 18.7 Gbps aggregate throughput in tri-band mode (2.4 GHz, 5 GHz, and 6 GHz simultaneously), and can be upgraded to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This Wi-Fi 7 access point achieves these speeds through concurrent 4×4 MIMO on all three bands with support for 4K QAM modulation.
Does the HPE Aruba S1G83A support IoT and location services?
Yes, the S1G83A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for IoT connectivity, plus built-in GNSS (L1/L5 receiver) and barometric sensors for precise indoor mapping and location services. These capabilities enable comprehensive IoT support and asset tracking in enterprise deployments.
What network connectivity options are available on this access point?
The HPE Aruba S1G83A features two 10 GbE Smart Rate ports with MACsec support for secure, high-speed backhaul connectivity. Both ports support Power-over-Ethernet (PoE) classes 3–6 and can be powered via 12 V DC, providing flexible deployment options in campus and enterprise environments.
How does the S1G83A handle multiple Wi-Fi bands simultaneously?
The S1G83A uses advanced tri-band coexistence filtering to manage simultaneous operation across 2.4 GHz, 5 GHz, and 6 GHz bands without interference. This tri-band architecture, combined with ClientMatch and AirMatch RF optimization algorithms, ensures optimal band separation and automated client steering for superior performance.
What security features are included in the HPE Aruba S1G83A?
The access point provides enterprise-grade security including WPA3 encryption, Enhanced Open for guest networks, MACsec for port-level security, and TPM 2.0 for secure credential storage. These features protect against wireless threats and ensure compliance with modern security standards in high-security environments.
Is the HPE Aruba S1G83A suitable for outdoor deployments?
Yes, the S1G83A is rated for operating temperatures from 0 °C to 50 °C with 5–95% relative humidity, making it suitable for both indoor and outdoor campus deployments. The access point's compact form factor (260×260×57 mm) and 1.53 kg weight provide flexible mounting options for diverse environments. Contact us today to discuss your deployment requirements and ensure proper site planning.
