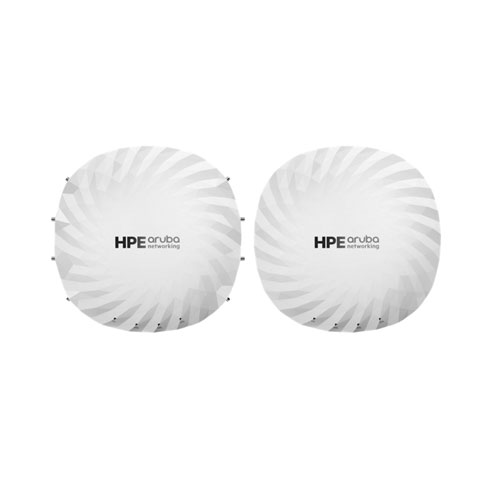

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G81A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What Wi-Fi standard does the HPE Aruba S1G81A support and what throughput can it deliver?
The HPE Aruba S1G81A is a Wi-Fi 7 (802.11be) access point that delivers up to 18.7 Gbps aggregate throughput across its tri-band configuration (2.4 GHz, 5 GHz, and 6 GHz). In dual-6 GHz mode, it can be upgraded to reach 28.8 Gbps peak throughput, making it ideal for high-density enterprise environments requiring extreme performance.
Does the S1G81A support IoT connectivity and location services?
Yes, the S1G81A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support. It also features a GNSS L1/L5 receiver and barometric sensor for precise indoor mapping and location services, enabling advanced asset tracking and environmental monitoring capabilities.
What are the network connectivity options and security features of this access point?
The S1G81A provides two 10 GbE Smart Rate ports with MACsec support for secure, high-speed backhaul connectivity. Security features include WPA3, Enhanced Open authentication, MACsec encryption, and TPM 2.0 for enterprise-grade protection of wireless and wired traffic.
How does the S1G81A simplify deployment and ongoing network management?
The S1G81A features cloud-native zero-touch setup and AI-driven provisioning that eliminates manual configuration. Its ClientMatch and AirMatch technologies automatically optimize RF performance, while integration with HPE Aruba OS-10 and Central management platforms with AIOps capabilities streamlines monitoring and maintenance across your deployment.
What are the power requirements and environmental operating conditions for the S1G81A?
The S1G81A accepts 12 V DC input or PoE (classes 3–6) through its 10 GbE ports, providing flexible deployment options. It operates reliably in temperatures from 0°C to 50°C with humidity levels between 5–95% RH, making it suitable for both indoor campus and outdoor environments.
