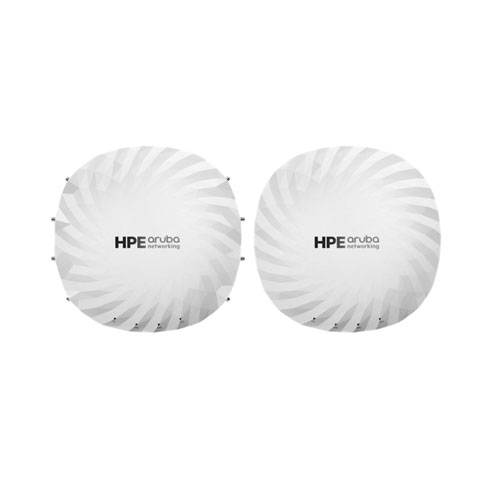

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G80A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds of the HPE Aruba S1G80A access point?
The HPE Aruba S1G80A delivers up to 18.7 Gbps aggregate throughput in tri-band mode (2.4 GHz, 5 GHz, and 6 GHz simultaneously), with the capability to upgrade to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This extreme performance is achieved through concurrent 4×4 MIMO on all three bands, supporting up to 12 total spatial streams. We offer this next-generation Wi-Fi 7 access point to organizations requiring maximum bandwidth for high-density deployments.
Does the S1G80A support IoT connectivity and location services?
Yes, the S1G80A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support, along with built-in GNSS (L1/L5 receiver) and barometric sensors for precise indoor mapping and location tracking. These capabilities enable you to deploy location-based services and IoT applications without requiring separate hardware. Contact us today to discuss how these integrated sensors can enhance your facility management and asset tracking initiatives.
What network connectivity options does the S1G80A provide?
The S1G80A features two 10 GbE Smart Rate ports with MACsec support for high-speed network connectivity and enhanced security. Both ports support Power-over-Ethernet (PoE) with classes 3–6 compliance, as well as 12 V DC input, providing flexible deployment options in various network environments. These redundant 10 GbE connections ensure uninterrupted connectivity and enable seamless integration into modern campus networks.
What security features are built into the S1G80A?
The S1G80A incorporates enterprise-grade security including WPA3, Enhanced Open authentication, MACsec for port-level encryption, and TPM 2.0 for secure credential storage and management. These features work together to protect your wireless network from unauthorized access and ensure compliance with modern security standards. Visit barcodesinc.com to learn how the S1G80A's security capabilities integrate with your existing network infrastructure.
How does the S1G80A simplify deployment and network management?
The S1G80A features cloud-native zero-touch setup and AI-driven provisioning through HPE Aruba's OS-10 and Central management platforms with integrated AIOps capabilities. ClientMatch and AirMatch technologies automatically optimize RF performance and client connectivity without manual intervention, while the tri-band coexistence filtering ensures optimal band separation across 2.4 GHz, 5 GHz, and 6 GHz. We offer comprehensive support to help you maximize these intelligent automation features in your deployment.
What are the operating conditions and physical specifications of the S1G80A?
The S1G80A operates reliably in environments ranging from 0°C to 50°C with 5–95% relative humidity, making it suitable for both indoor and outdoor campus deployments. The access point measures 260×260×57 mm and weighs 1.53 kg, enabling flexible mounting options. It meets stringent international certifications including Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1, ensuring compliance with global standards. Contact us today for guidance on deploying the S1G80A in your specific environmental conditions.
The HPE Aruba S1G80A Wireless Access Points is also known as
HPE-S1G80A
