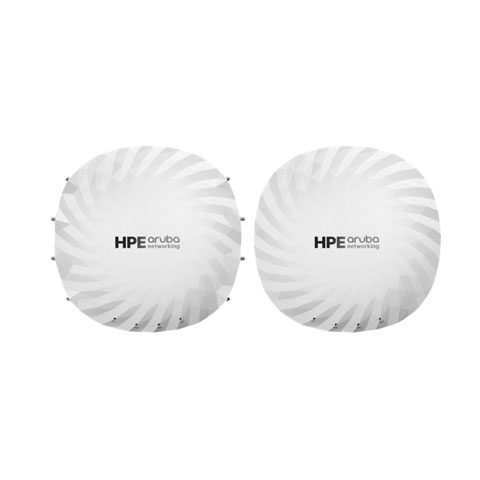

HPE Aruba S1G72A Wireless Access Points

The HPE Aruba S1G72A delivers up to 18.7 Gbps aggregate throughput in standard tri-band mode (2.4 GHz, 5 GHz, and 6 GHz), and can be upgraded to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This extreme performance is achieved through concurrent 4×4 MIMO spatial streams on all three bands, supporting up to 12 total spatial streams. We offer this access point as part of our next-generation Wi-Fi 7 portfolio for enterprises requiring maximum wireless capacity.

Yes, the S1G72A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT device support, plus built-in GNSS (L1/L5) and barometric sensors for precise indoor mapping and location tracking. These integrated radios eliminate the need for separate IoT infrastructure, simplifying deployment for enterprises managing mixed device ecosystems. Contact us today to learn how our IoT-enabled access points support your location-based and sensor-driven applications.

The S1G72A provides enterprise-grade security with WPA3 encryption, Enhanced Open authentication, MACsec support on both 10 GbE ports, and a TPM 2.0 security module for secure credential storage. These features ensure encrypted traffic between access points and controllers while protecting against unauthorized network access. Visit barcodesinc.com to explore our complete HPE Aruba security solutions for campus and branch deployments.

The S1G72A features two redundant 10 GbE Smart Rate ports with PoE Power Delivery capability, supporting IEEE 802.3af, 802.3at, and 802.3bt power classes for flexible deployment options. The dual 10 GbE ports with MACsec support ensure high-speed backhaul connectivity and automatic failover for uninterrupted service in mission-critical environments. We offer complete integration support to ensure optimal network performance with your existing infrastructure.

The S1G72A uses AI-driven provisioning and automated RF tuning through ClientMatch and AirMatch technologies, which intelligently optimize band selection and power levels based on real-time network conditions. Cloud-native zero-touch setup enables rapid deployment without manual configuration, while tri-band coexistence filtering ensures optimal separation between 2.4 GHz, 5 GHz, and 6 GHz bands. Our team can help you implement these advanced features to reduce deployment time and operational overhead.

The S1G72A operates reliably in temperatures from 0°C to 50°C with relative humidity between 5–95%, making it suitable for both indoor campus and outdoor deployments. The compact form factor (260×260×57 mm) and 1.53 kg weight allow flexible mounting options, while certifications including Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 ensure compliance with global standards. Contact us today for deployment guidance specific to your environmental requirements.
