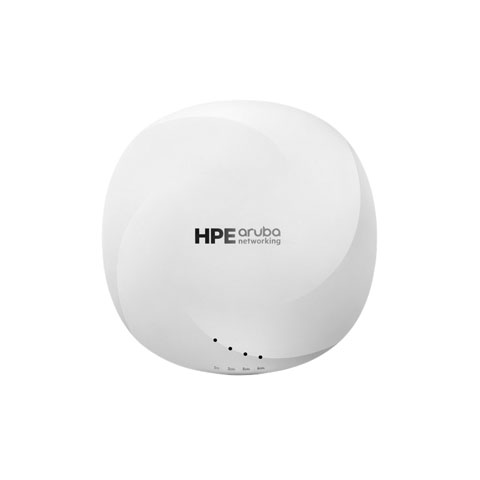

HPE Aruba S1G53A Wireless Access Points
HPE Aruba 650 Series Wireless Access Points Model Overview
The HPE Aruba Networking 650 Series Campus Access Points are engineered to meet the increasing needs of modern enterprises, providing superior connectivity with Wi-Fi 6E technology. By leveraging a comprehensive tri-band coverage, including 2.4 GHz, 5 GHz, and 6 GHz bands, these access points enable a combined peak data rate of up to 7.8 Gbps. Designed for high-demand applications such as high-definition video streaming and augmented reality, they ensure exceptional performance with reduced interference and increased capacity, making them the ideal choice for supporting a growing influx of customer and IoT devices.
Key Features
- Comprehensive tri-band coverage across 2.4 GHz, and 6 GHz
- Up to 7.8 Gbps combined peak data rate
- 4x4 MIMO radios with MU-MIMO and OFDMA support
- Ultra tri-band filtering to minimize interference
- High availability with dual configurable 5 Gbps Ethernet ports
- Built-in GPS receivers for accurate indoor location tracking
Specifications
- Hardware Variants:
- AP-654: External antenna models
- AP-655: Internal antenna models
- Wi-Fi Radio Specifications:
- 2.4 GHz Radio: 4x4 MIMO, up to 1147 Mbps
- 5 GHz Radio: 4x4 MIMO, up to 2.4 Gbps
- 6 GHz Radio: 4x4 MIMO, up to 4.8 Gbps
- Environmental Specifications:
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -25°C to +55°C
Recommended Accessories
Category
- Access Point Accessories (1)
- Antennas (6)
- Cables, Connectors, and Adapters (21)
- HPE Aruba (50)
- Mounting Hardware and Stands (15)
- Network Antennas (6)
- PoE Injectors (2)
- Power Device (1)
- Wireless Access Points (1)
- Wireless Adapters (3)
Recommended Accessories for Model: HPE Aruba S1G53A Wireless Access Points
Top Access Point Accessories Purchased With HPE Aruba S1G53A
-
HPE Aruba R7J45A AccessoryAccess Point Accessories, HPE Aruba 650 Series, AP-655-CVR-20 20-pack for AP-655 White Non-Glossy Snap-On coversItem on backorder — chat for lead time$364.49
Top Antennas Purchased With HPE Aruba S1G53A
-
HPE Aruba S1F79A AntennaAntennas, HPE Aruba, AP-ANT-311 Direct-Mount RP-SMA Tri-band 1x1 Omni Dipole AntennaIn Stock$40.39 -
HPE Aruba S1F80A AntennaAntennas, HPE Aruba, AP-ANT-312 Direct-Mount RP-SMA Tri-band 1x1 Low-Profile Omni Dipole AntennaIn Stock$33.74 -
HPE Aruba S1F81A AntennaAntennas, HPE Aruba, AP-ANT-313 Cabled RP-SMA Tri-band 1x1 Omni Dipole AntennaItem on backorder — chat for lead time$223.53
Top Cables, Connectors, and Adapters Purchased With HPE Aruba S1G53A
-
HPE Aruba R3K00A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5 mm connectorIn Stock$82.59 -
HPE Aruba S0P44A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, PC-AC-TH 250V/10A 1.8 m C13 to TIS 166-2549 (TH) AC Power CordItem on backorder — chat for lead time$18.00 -
HPE Aruba R8L34A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-CBL-EXT10 10-pack CAT6A Ethernet Extension CablesItem on backorder — chat for lead time$241.49
Top HPE Aruba Purchased With HPE Aruba S1G53A
-
HPE Aruba S4K79A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-U Campus Access Point Type U Universal Mount Bracket KitIn Stock$61.03 -
HPE Aruba S0J40A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-MP10-U Campus AP 10-Pack Universal Mount Bracket KitIn Stock$503.64 -
HPE Aruba R3J15A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket KitIn Stock$32.31
Top Mounting Hardware and Stands Purchased With HPE Aruba S1G53A
-
HPE Aruba S4K79A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-U Campus Access Point Type U Universal Mount Bracket KitIn Stock$61.03
-
HPE Aruba S0J40A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-MP10-U Campus AP 10-Pack Universal Mount Bracket KitIn Stock$503.64
-
HPE Aruba R3J15A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba 750 Series, AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket KitIn Stock$32.31
Top Network Antennas Purchased With HPE Aruba S1G53A
-
HPE Aruba S1F79A AntennaAntennas, HPE Aruba, AP-ANT-311 Direct-Mount RP-SMA Tri-band 1x1 Omni Dipole AntennaIn Stock$40.39
-
HPE Aruba S1F80A AntennaAntennas, HPE Aruba, AP-ANT-312 Direct-Mount RP-SMA Tri-band 1x1 Low-Profile Omni Dipole AntennaIn Stock$33.74
-
HPE Aruba S1F81A AntennaAntennas, HPE Aruba, AP-ANT-313 Cabled RP-SMA Tri-band 1x1 Omni Dipole AntennaItem on backorder — chat for lead time$223.53
Top PoE Injectors Purchased With HPE Aruba S1G53A
-
HPE Aruba S3J26A PoE InjectorsPoE Injectors, HPE Aruba, AP-POE-BT10 1-port 10G 60W Midspan 802.3bt PoE InjectorIn Stock$273.40 -
HPE Aruba R1C73A PoE InjectorsPoE Injectors, HPE Aruba, AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W Midspan InjectorIn Stock$225.12
Top Power Device Purchased With HPE Aruba S1G53A
-
HPE Aruba JW118A Power DevicePower Device, HPE Aruba, AC Power Cord (Europe), 250V/10A, 1.8m C13 to CEE7/7Item on backorder — chat for lead time$17.99
Top Wireless Access Points Purchased With HPE Aruba S1G53A
-
HPE Aruba R8F34A Wireless Access PointsWireless Access Points, HPE Aruba, USB LTE Modem for use with Access Points and GatewaysItem on backorder — chat for lead time$608.83
Top Wireless Adapters Purchased With HPE Aruba S1G53A
-
HPE Aruba R2X45A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB USB Zigbee BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y09A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 10-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y10A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 50-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Frequently Asked Questions
What Wi-Fi standards does the HPE Aruba S1G53A support?
The HPE Aruba S1G53A is a Wi-Fi 6E access point with concurrent tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies. It delivers peak rates of 4.8 Gbps on 6 GHz, 2.4 Gbps on 5 GHz, and 574 Mbps on 2.4 GHz, with an aggregate throughput of 7.8 Gbps. This enterprise-grade AP uses three 4×4 MIMO radios to eliminate coverage gaps and ensure interference-free operation across all bands.
Does the S1G53A support network redundancy and failover?
Yes, the HPE Aruba S1G53A features dual 5 Gbps Smart Rate Ethernet ports with hitless failover capability, ensuring continuous service even during port or power failures. Both ports support Power-over-Ethernet (PoE), providing data and power redundancy for mission-critical deployments. This design is ideal for warehouse and logistics environments where network uptime is essential.
What IoT and location capabilities are built into this access point?
The S1G53A integrates Bluetooth 5 and 802.15.4/Zigbee radios for IoT device connectivity, along with onboard GPS and barometric sensors for indoor positioning and asset tracking. These embedded capabilities enable warehouse managers to deploy location-based services and IoT applications without additional hardware investments.
What are the power and environmental specifications for the S1G53A?
The HPE Aruba S1G53A operates in environments from 0–50 °C with 5–95% relative humidity, making it suitable for both climate-controlled offices and warehouse facilities. It supports both PoE and 12V DC power input, with a maximum power consumption of 126 watts. The compact form factor (260×260×60 mm) and 1.8 kg weight allow flexible mounting options.
How does the S1G53A's tri-band filtering improve wireless performance?
The HPE Aruba S1G53A uses patented ultra tri-band filtering technology to eliminate interference and coverage gaps between the 5 GHz and 6 GHz bands. This unique filtering approach ensures clean, uninterrupted signal transmission across all three concurrent bands, delivering the full 7.8 Gbps aggregate throughput without performance degradation from band overlap or interference.
Is the HPE Aruba S1G53A suitable for large warehouse deployments?
Yes, the S1G53A is designed for enterprise-grade indoor deployments and is ideal for warehouse environments requiring high-capacity wireless coverage and IoT integration. Its dual 5 Gbps Ethernet ports with hitless failover, built-in location sensors, and embedded Bluetooth/Zigbee radios make it well-suited for logistics operations that need reliable connectivity, asset tracking, and mobile device support. Contact us today to discuss deployment options for your warehouse infrastructure.
