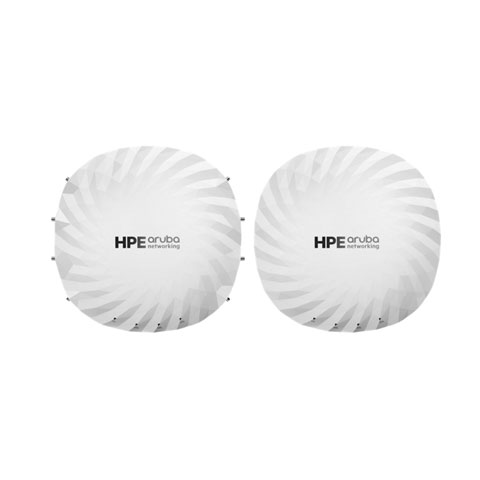

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S0H10A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S0H10A access point?
The HPE Aruba S0H10A delivers up to 18.7 Gbps aggregate throughput in standard tri-band mode (2.4 GHz, 5 GHz, and 6 GHz), with the ability to upgrade to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This exceptional performance is achieved through concurrent 4×4 MIMO on all three bands and Wi-Fi 7 (802.11be) technology with 4K QAM modulation. We offer these access points for deployments requiring extreme throughput and reliability in high-density environments.
Does the HPE Aruba S0H10A support IoT connectivity and location services?
Yes, the S0H10A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support, plus built-in GNSS (L1/L5 receiver) and barometric sensors for precise indoor mapping and location accuracy. These integrated radios eliminate the need for separate IoT gateways in many deployments. Contact us today to learn how these capabilities can enhance your IoT infrastructure.
What network connectivity options does the S0H10A provide?
The HPE Aruba S0H10A features two 10 GbE Smart Rate ports with MACsec security support, providing redundant high-speed connectivity to your core network. Both ports support Power-over-Ethernet (PoE) classes 3–6 as well as 12 V DC input, offering flexible deployment options in various network architectures. Available from us with full technical support for integration into your existing infrastructure.
How does the S0H10A simplify deployment and ongoing management?
The S0H10A features cloud-native zero-touch setup and AI-driven provisioning through HPE Aruba's OS-10 and Central management platforms with AIOps capabilities. ClientMatch and AirMatch technologies automate RF optimization and client steering, while tri-band coexistence filtering ensures optimal band separation without manual tuning. Our team can assist with deployment planning to maximize these automation benefits.
What security features are included in the HPE Aruba S0H10A?
The S0H10A provides enterprise-grade security including WPA3 encryption, Enhanced Open for guest networks, MACsec for port-level security, and TPM 2.0 for secure credential storage. These features work together to protect your wireless infrastructure from unauthorized access and data interception. Visit barcodesinc.com to discuss security requirements for your deployment.
What are the environmental operating specifications for the S0H10A?
The HPE Aruba S0H10A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5–95% RH, making it suitable for diverse indoor and outdoor campus environments. The compact form factor (260×260×57 mm) and 1.53 kg weight enable flexible mounting options, while certifications including Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 ensure compliance with global standards. Contact us today for guidance on environmental placement and installation.
