Features:
Hot-swappable

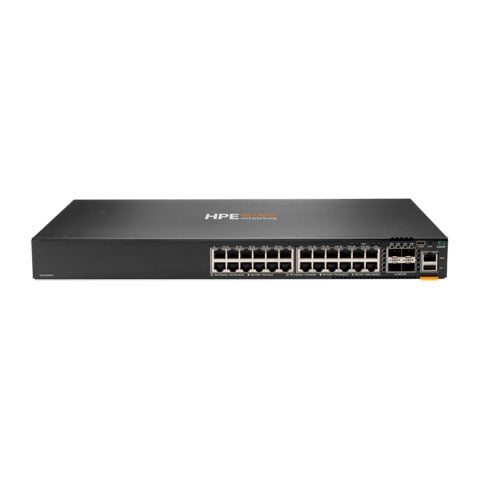

HPE Aruba S0E91A Ethernet Switch
Part Number:
S0E91A
Model:
CX6300
HPE Aruba CX6300 Ethernet Switch Model Overview
The HPE Aruba Networking CX 6300 Switch Series delivers robust performance and versatility suited for modern enterprise environments. Featuring stackable Layer 3 switches with high-capacity throughput, it supports IoT, mobile, and cloud applications seamlessly. Designed to enhance operational efficiency with integrated security and advanced automation tools, the CX 6300 series stands as a backbone for organizations looking to improve their network infrastructure. With features like high power PoE support and flexible port configurations, these switches empower businesses to optimize connectivity and performance across their networks.
Key Features
- Stackable Layer 3 switches with up to 1760 Gbps switching capacity
- Comprehensive security features with trustworthy management and segmentation
- High-density Power over Ethernet (PoE) support up to 90W per port
- Supports 1G/2.5G/5G/10G multi-gigabit Ethernet
- Built-in high-speed uplinks available on select models
Specifications
- Performance:
- Switching Capacity: 1760 Gbps
- Forwarding Throughput: 1310 Mpps
- Stacking Bandwidth: 400 Gbps
- Power over Ethernet:
- PoE Standards: IEEE 802.3af, 802.3at, 802.3bt (up to 90W)
- Dimensions:
- Height: 4.4 cm
- Width: 44.2 cm
- Depth: 38.5 cm
- Temperature:
- Operating: 0° to 45°C
- Non-Operating: -40° to 70°C
- Weight: 5.26 kg (11.60 lb)
HPE Aruba S0E91A Ethernet Switch Overview
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the HPE Aruba Networking CX switching portfolio, designed for today's enterprise campus, branch, and data center networks. By combining a modern, fully programmable OS with the HPE Aruba Networking Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.
A powerful HPE Aruba Networking Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE1 and 40/100GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling.
Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle top-of-rack (TOR) and out-of-band-management (OOBM) data center deployments.
Dynamic Segmentation extends HPE Aruba Networking's foundational wireless role-based policy capability to HPE Aruba Networking wired switches. This means that the same security, user experience, and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Product differentiators | AOS-CX - a modern operating system
The HPE Aruba Networking CX 6300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks. A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks. AOS-CX operating system features are organized into HPE Aruba Networking CX Foundation and HPE Aruba Networking CX Advanced software licenses.
Every HPE Aruba Networking CX switch includes an active, embedded AOS-CX Foundation license at no additional cost with the option to upgrade to an Aruba CX Advanced license
The CX Foundation license has everything needed to deploy, connect, and troubleshoot an enterprise network, including:
- HPE Aruba Networking Network Analytics Engine (NAE)
- Dynamic Segmentation
- Switch Stacking
- High Availability and Resiliency
- Quality of Service (QoS)
- Layer 2 Switching
- Layer 3 Services and Routing
- IP Multicast
- Network Security
- Support for Aruba NetEdit
Technical Information
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet PoE
- 4 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 10 Gigabit Ethernet
- 100 Gigabit Ethernet
Network Technology:
- 10GBase-T
- 100GBase-X
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
QSFP28
Number of SFP Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1AX
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1t
- IEEE 802.1v
- IEEE 802.1w
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3an
- IEEE 802.3by
- IEEE 802.3cc
- IEEE 802.3cd
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
2640 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- Power Supply
- AC
Redundant Power Supply Supported:
Yes
Number of Power Supplies Supported:
2
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Cabinet Mount
- Surface Mount
- Compact
Height:
1.7"
Width:
17.4"
Depth:
15.2"
Weight (Approximate):
11.60 lb
Miscellaneous
Application/Usage:
- Branch Office
- Data Center
- Enterprise
- Campus
- Business
TAA Compliant:
Yes
Item Numbers
GTIN:
0190017627083
UPC:
190017627083
EAN:
0190017627083
UNSPSC:
43222612
