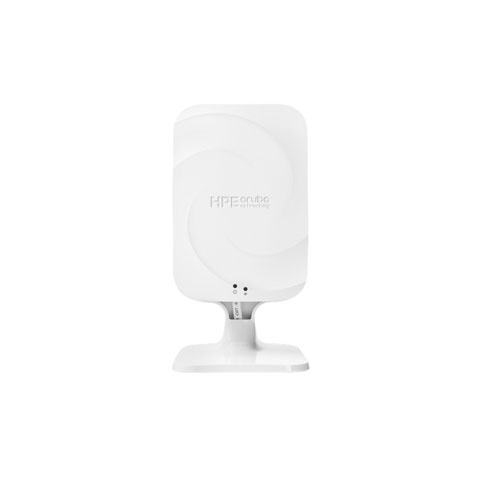

HPE Aruba S0B65A Wireless Access Points

Part Number: S0B65A
Model: 600H Series
Add to My Shopping List Add to Compare
$1,300.37
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard
Bluetooth 5
Network Band
Tri Band
Frequency Band
2.40 GHz5 GHz6 GHz

Product Description:

  Wireless Access Points, HPE Aruba 600H Series, AP-605HR (US) 2-Radio 3-Band 2x2 Wi-Fi 6E 1+4 ETH PSE USB Remote AP Bundle
Explore all HPE Aruba 600H Series Wireless Access Points
Add to Quote
HPE Aruba S0B65A Wireless Access Points
HPE Aruba S0B65A Wireless Access Points
HPE Aruba S0B65A Wireless Access Points HPE Aruba S0B65A Wireless Access Points
Full specifications (PDF)

HPE Aruba 600H Series Wireless Access Points Model Overview

The HPE Aruba Networking 600H Series Hospitality Access Points are engineered to elevate wireless connectivity for hospitality, branch, and remote work environments. Offering high-performance Wi-Fi 6E technology, these access points ensure seamless connectivity with a peak data rate of up to 3.6 Gbps. Designed for flexibility, they support wired and wireless connections and are equipped to handle the demands of bandwidth-hungry applications. This compact yet powerful solution is ideal for enhancing guest experiences in hotels, residence halls, and remote offices.

Key features:
  • High Performance: Supports up to 3.6 Gbps combined peak data rate across three bands (2.4 GHz, 5 GHz, 6 GHz).
  • Seamless Connectivity: Ideal for hospitality environments, handling hundreds of devices simultaneously without quality loss.
  • Multigigabit Ports: Featuring a 2.5GbE uplink port and multiple 1GbE ports for flexible wired connectivity.
  • IoT-Ready: Integrated support for Bluetooth 5 and Zigbee, simplifying IoT management.
  • Easy Deployment: Can be mounted as a desktop or wall-mounted unit, simplifying installation.


Specifications:
  • Access Point Type: Indoor, tri-band 802.11ax (Wi-Fi 6E) with dual concurrent radios.
  • Peak Data Rates: 2.4 GHz: 574 Mbps, 5 GHz: 1.2 Gbps, 6 GHz: 2.4 Gbps.
  • Device Capacity: Supports up to 512 associated devices per radio.
  • Power Options: Powered by PoE (802.3af/at/bt) or direct DC (48V).
  • Weight & Dimensions: 500g; 105 mm (W) x 40 mm (D) x 153 mm (H).
  • Environment: Operating temperature: 0°C to 40°C, relative humidity: 5% to 95%.
HPE Aruba S0B65A Wireless Access Points Overview

HPE Aruba Networking 600H Series Hospitality Access Points (APs) deliver seamless, secure, high-performance wireless connectivity to mission critical hospitality, small branch, and remote work environments. The 600H Series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet increasing demands of bandwidth hungry video, growing numbers of client and IoT devices, and growth of cloud services.

The flexible compact form factor includes multi-gigabit and gigabit ports, PoE support, and integrated BLE and Zigbee, providing a range of connectivity options ideal for venues such as hotels, residence halls, and remote offices. The 600H Series includes a limited lifetime warranty for investment protection.

Use cases | Hospitality

Delivering exceptional hotel guest or student residence hall experiences requires seamless Wi-Fi connectivity that is always on. The 600H Series can support hundreds of guest and student devices simultaneously without impacting Wi-Fi quality and optimizes the connection to the best available AP regardless of where the device is carried so users can roam without impact to performance. Critical applications can be prioritized so they can perform at their peak, without impacting the guest or staff experience. Desktop or wall mount configurations provide deployment flexibility with wired ports and integrated BLE5.0 and 802.15.4 (Zigbee) supporting a range of IoT devices.

Small branch and remote work

With the 600H Series managed by HPE Aruba Networking Central, IT can remotely deploy and centrally manage secure network connectivity for hundreds or even thousands of remote workers or small office employees to deliver an in-office experience-without need for a gateway. Remote workers can connect wireless clients (laptops, smartphones, tablets) as well as wired clients, such as VoIP phones, and access mission-critical applications reliably and securely via a 2.5 Gbps uplink/downlink Ethernet port, dedicated 1 Gbps uplink port, and three dedicated downlink ports.

WI-FI 6E for faster speeds, more capacity

600H Series APs are designed to take advantage of Wi-Fi 6E and the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a maximum combined data rate of up to 3.6 Gbps.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard:
Bluetooth 5
Network Band:
Tri Band
Frequency Band:
  • 2.40 GHz
  • 5 GHz
  • 6 GHz
Total Number of Antennas:
2
Number of Internal Antennas:
2
Indoor/Outdoor:
Indoor
Wireless Transmission Speed:
3.60 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Data Encryption:
Yes
Encryption Standard:
  • WPA3
  • WPA2-MPSK
  • WPA
  • WPA2
  • WPA3-ENT
Interfaces/Ports
Ethernet Technology:
  • 2.5 Gigabit Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
5
PoE (RJ-45) Port:
Yes
PoE PD Port:
Yes
USB:
Yes
USB Standard:
USB 2.0
Management Port:
Yes
Network & Communication
Wi-Fi Generation:
Wi-Fi 6E
Power Description
Power Consumption:
5.80 W
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Desktop
  • Box Mount
Antenna Form Factor:
Internal
Height:
6"
Width:
4.1"
Depth:
1.6"
Weight (Approximate):
1.10 lb
Item Numbers
GTIN: 0190017621180
UPC: 190017621180
EAN: 0190017621180
UNSPSC: 43222640

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (21)
  • HPE Aruba (33)
  • Mounting Hardware and Stands (3)
  • Network Management Devices (1)
  • PoE Injectors (3)
  • Power Device (1)
  • Wireless Access Points (1)
  • Wireless Adapters (3)

Recommended Accessories for Model: HPE Aruba S0B65A Wireless Access Points

Top Cables, Connectors, and Adapters Purchased With HPE Aruba S0B65A

See All Cables, Connectors, and Adapters for HPE Aruba S0B65A Wireless Access Points >

Top HPE Aruba Purchased With HPE Aruba S0B65A

See All HPE Aruba for HPE Aruba S0B65A Wireless Access Points >

Top Mounting Hardware and Stands Purchased With HPE Aruba S0B65A

Top Network Management Devices Purchased With HPE Aruba S0B65A

Top PoE Injectors Purchased With HPE Aruba S0B65A

Top Power Device Purchased With HPE Aruba S0B65A

Top Wireless Access Points Purchased With HPE Aruba S0B65A

Top Wireless Adapters Purchased With HPE Aruba S0B65A

Frequently Asked Questions

The HPE Aruba S0B65A is a Wi-Fi 6E access point that delivers tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz with 2×2:2 MIMO radios on dual independent radios. It supports up to 7 × 160 MHz channels in the 6 GHz band and achieves 3.6 Gbps aggregate throughput (2.4 Gbps on 6 GHz + 1.2 Gbps on 5 GHz + 287 Mbps on 2.4 GHz). This makes it ideal for high-capacity deployments in hotels, residence halls, and branch offices where bandwidth demands are significant.

The S0B65A offers flexible power delivery through PoE-PD (802.3af/at/bt) or 12 V DC input, making it compatible with standard PoE infrastructure. It features dual multi-gigabit uplinks: one 2.5 GbE port and one 1 GbE port, plus two additional 1 GbE PSE ports for powering connected devices. This dual uplink design ensures continuous service and network redundancy in mission-critical environments.

Yes, the S0B65A includes embedded Bluetooth 5 and IEEE 802.15.4/Zigbee radios for seamless IoT connectivity, allowing it to integrate with smart building and asset tracking systems. It also features onboard GPS and barometric sensors that enable automatic self-location and indoor mapping capabilities without requiring external coordination. These features make it particularly valuable for hospitality and campus environments where location awareness enhances guest experience and operational efficiency.

The S0B65A can support up to 512 clients per radio and provides 16 BSSIDs, enabling it to handle dense deployments typical in hotels, residence halls, and multi-tenant environments. This high client density combined with Wi-Fi 6E throughput ensures consistent performance even during peak usage periods.

The S0B65A is designed to operate reliably in temperatures ranging from 0 °C to 50 °C with relative humidity between 5% and 95%, making it suitable for both indoor and outdoor deployments. Its compact form factor (105 × 40 × 153 mm) and lightweight design (500 g) allow for flexible mounting in space-constrained locations like hospitality venues and branch offices.

Yes, the S0B65A is classified as an LPI (Low Power Indoor) device, which means it does not require external coordination for deployment and can be installed without regulatory approval processes. This classification simplifies deployment in hotels, residence halls, and other commercial spaces where rapid installation is essential.

The HPE Aruba S0B65A Wireless Access Points is also known as HPE-S0B65A
