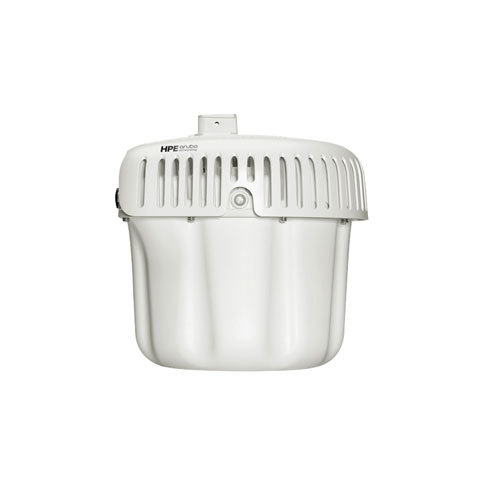

HPE Aruba 580 Series Wireless Access Points Model Overview
Ideal for harsh outdoor and industrial environments, the 580 Series AP combines robust Wi-Fi 6 capacity with a rugged IP66/67 housing. Two 4×4:4 radios deliver a total of 2.97 Gbps throughput, serving high-density clients, video streams and analytics workloads. The all-metal, sealed enclosure and embedded surge arrestors protect against dust, water and power spikes. Native Bluetooth 5 and Zigbee radios simplify IoT deployments, while multi-gigabit Smart Rate 5 GbE, 10 Gb SFP+ and PoE-PD ports provide flexible, redundant backhaul.
Key Features
4×4:4 MIMO on both 5 GHz and 2.4 GHz bands
Up to 2.97 Gbps total aggregate throughput
IP66/67-rated; –40 °C to +65 °C; salt spray tested
Built-in surge protection on all wired interfaces
Bluetooth 5 & Zigbee for IoT and location services
Mounting: pole, wall or bracket kits (sold separately)
Warranty: lifetime hardware with advanced replaceable modules
HPE Aruba R7T20A Wireless Access Points Overview
Purpose-built to survive in the harshest outdoor environments, Aruba 580 Series Outdoor Access Points are designed for the highest levels of performance and greater deployment flexibility - all backed by a limited lifetime warranty. Aruba 580 Series APs deliver the speed and reliability needed for large enterprise and Industrial IoT deployments with high power Bluetooth and 802.15.4/Zigbee radios and flexible power options.
DESIGNED FOR OUTDOOR FLEXIBILITY
Weatherproofed, and temperature hardened to survive in the harshest outdoor environments, Aruba 580 Series APs withstand exposure to extreme high and low temperatures, persistent moisture, and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial surge protection and are IP66/67 certified.
To support high-performance connectivity in dense mobile and IoT outdoor environments, Aruba 580 Series APs deliver maximum aggregate on air data rates of 2.97 Gbps and include 5 Gbps Smart Rate Ethernet ports. In addition, dual redundant power/port failover and support for AC ensure high availability with uninterrupted performance.
WI-FI 6 BENEFITS
The 580 Series APs are based on the Wi-Fi 6/802.11ax standard, which means that Wi-Fi 6 features such as Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring, Downlink Multi-User MIMO (MU-MIMO), and cellular co-location are fully supported making it more efficient and secure.
Advantages of OFDMA
This capability allows Aruba's APs to handle multiple 802.11ax capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.
Bi-directional Multi-User MIMO (MU-MIMO)
Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), Aruba 580 Series APs can simultaneously connect clients using downlink - and now - uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.
WI-FI OPTIMIZATION | Client optimization
Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. ClientMatch also dynamically steers traffic to load balance APs to improve the user experience.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
What makes the HPE Aruba 580 Series AP suitable for outdoor and industrial environments?
The HPE Aruba 580 Series features an IP66/67-rated all-metal, sealed enclosure that protects against dust and water ingress, with embedded surge arrestors safeguarding all wired interfaces. The access point is rated for extreme temperatures from –40°C to +65°C and has been salt spray tested, making it ideal for harsh outdoor and industrial deployments. We offer this rugged solution for warehouse, logistics, and manufacturing environments where standard indoor access points would fail.
What is the maximum throughput and radio configuration of the HPE Aruba 580 Series?
The 580 Series delivers up to 2.97 Gbps total aggregate throughput with two 4×4:4 MIMO radios operating on both 5 GHz and 2.4 GHz bands. The access point supports HE160, HE80, and HE40 radio modes for flexible deployment scenarios. This high-capacity design handles high-density clients, video streams, and analytics workloads that are common in modern warehouse and logistics operations.
What connectivity and backhaul options does the HPE Aruba 580 Series provide?
The 580 Series includes Smart Rate 5 GbE ports, 10 Gb SFP+ uplinks, and PoE-PD (Power over Ethernet Powered Device) with failover capability for redundant backhaul connectivity. These multi-gigabit options ensure flexible network integration and high-speed data transport from remote outdoor locations back to your network infrastructure. Contact us today to discuss backhaul requirements for your specific deployment.
Does the HPE Aruba 580 Series support IoT devices and location services?
Yes, the 580 Series includes native Bluetooth 5 and Zigbee radios built-in, which simplify IoT deployments and enable location-based services without requiring separate hardware. These wireless technologies integrate seamlessly with the Wi-Fi 6 infrastructure, allowing you to manage both connectivity and IoT analytics from a single access point. Visit barcodesinc.com to explore how this integrated approach reduces deployment complexity.
What are the power requirements and warranty coverage for the HPE Aruba 580 Series?
The 580 Series draws a maximum of 45W through PoE-PD, making it efficient to power from standard network infrastructure without requiring dedicated AC power lines at remote outdoor locations. The access point includes a lifetime hardware warranty with advanced replaceable modules, protecting your investment in outdoor wireless infrastructure. We offer this comprehensive warranty coverage on all units available from us.
What mounting options are available for the HPE Aruba 580 Series?
The 580 Series supports pole, wall, and bracket mounting configurations to accommodate various outdoor installation scenarios in warehouses, logistics yards, and industrial facilities. Mounting kits are sold separately to match your specific environmental and structural requirements. Contact us today to ensure you have the correct mounting hardware for your deployment location.
