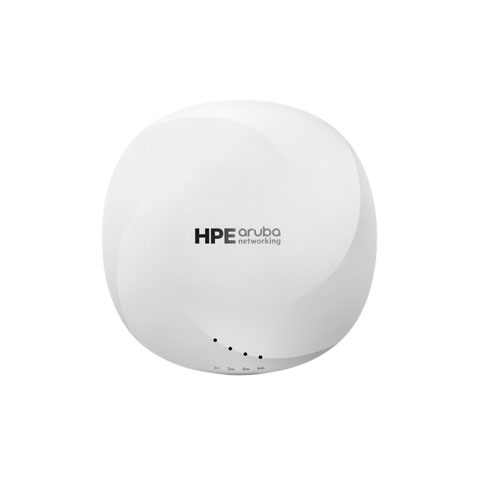

HPE Aruba 650 Series Wireless Access Points Model Overview
The HPE Aruba Networking 650 Series Campus Access Points are engineered to meet the increasing needs of modern enterprises, providing superior connectivity with Wi-Fi 6E technology. By leveraging a comprehensive tri-band coverage, including 2.4 GHz, 5 GHz, and 6 GHz bands, these access points enable a combined peak data rate of up to 7.8 Gbps. Designed for high-demand applications such as high-definition video streaming and augmented reality, they ensure exceptional performance with reduced interference and increased capacity, making them the ideal choice for supporting a growing influx of customer and IoT devices.
Key Features
Comprehensive tri-band coverage across 2.4 GHz, and 6 GHz
Up to 7.8 Gbps combined peak data rate
4x4 MIMO radios with MU-MIMO and OFDMA support
Ultra tri-band filtering to minimize interference
High availability with dual configurable 5 Gbps Ethernet ports
Built-in GPS receivers for accurate indoor location tracking
Specifications
Hardware Variants:
AP-654: External antenna models
AP-655: Internal antenna models
Wi-Fi Radio Specifications:
2.4 GHz Radio: 4x4 MIMO, up to 1147 Mbps
5 GHz Radio: 4x4 MIMO, up to 2.4 Gbps
6 GHz Radio: 4x4 MIMO, up to 4.8 Gbps
Environmental Specifications:
Operating Temperature: 0°C to +50°C
Storage Temperature: -25°C to +55°C
HPE Aruba R7J38A Wireless Access Points Overview
Flagship offering with the performance to meet growing enterprise needs with Wi-Fi 6E
By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
MORE CAPACITY AND WIDER CHANNELS
The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. The three 4x4 MIMO radios of the platform deliver a combined peak datarate of up to 7.8Gbps.
Advantages of 6GHz
Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
For operation in the 6GHz band, the 650 Series APs are part of the low power indoor (LPI) device class. This fixed indooronly class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
LESS INTERFERENCE
650 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently. Since there is only 50MHz between 5GHz and the 6GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.
BUSINESS CONTINUITY
The Series 650 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps, these dual ports provide business continuity for mission critical applications.
What Wi-Fi standards and speeds does the HPE Aruba R7J38A support?
The HPE Aruba R7J38A is a Wi-Fi 6E access point with concurrent tri-band capability, delivering up to 7.8 Gbps aggregate throughput across three radios: 4.8 Gbps on 6 GHz, 2.4 Gbps on 5 GHz, and 574 Mbps on 2.4 GHz. Each band operates on a 4×4 MIMO configuration, ensuring multi-gigabit performance for enterprise environments. We offer this model as part of our HPE Aruba 650 Series lineup for organizations requiring high-capacity wireless coverage.
Does the HPE Aruba R7J38A support Power over Ethernet (PoE)?
Yes, the HPE Aruba R7J38A features two configurable 5 Gbps Ethernet ports that are PoE capable, allowing you to power the access point directly from your network infrastructure. The device can also be powered via 12 V DC if needed, providing flexibility in deployment scenarios. This dual power option ensures continuous service with data and power redundancy across your network.
What IoT and location capabilities does this access point include?
The HPE Aruba R7J38A integrates embedded Bluetooth 5 and 802.15.4/Zigbee radios for comprehensive IoT connectivity, enabling seamless communication with wireless sensors and devices. Additionally, onboard GPS and barometric sensors provide self-locating and indoor positioning capabilities, making this ideal for enterprises requiring asset tracking and location-based services. Contact us today to discuss how these features can enhance your wireless infrastructure.
What environmental operating conditions does the R7J38A support?
The HPE Aruba R7J38A operates reliably in temperatures ranging from 0–50 °C with relative humidity between 5–95%, making it suitable for diverse indoor deployment environments including warehouses, logistics facilities, and enterprise campuses. The compact form factor (260×260×60 mm) and 1.8 kg weight allow for flexible mounting options. We offer this model to support demanding operational environments where temperature and humidity fluctuations are common.
How does the patented filtering technology benefit wireless performance?
The HPE Aruba R7J38A features unique ultra tri-band filtering that eliminates coverage gaps and interference between the 5 GHz and 6 GHz bands, ensuring interference-free operation across all three concurrent radios. This patented technology enables consistent, reliable performance even in dense RF environments where multiple access points operate in close proximity. The result is seamless roaming and optimal throughput for enterprise users throughout your facility.
What redundancy features does the R7J38A offer for business continuity?
The HPE Aruba R7J38A provides dual 5 Gbps Smart Rate Ethernet ports with hitless failover capability, ensuring continuous wireless service even if one network connection fails. This redundancy architecture is critical for mission-critical deployments in warehouses and logistics operations where network downtime is unacceptable. Visit barcodesinc.com or contact us today to learn how this access point can strengthen your network resilience.
The HPE Aruba R7J38A Wireless Access Points is also known as
HPE-R7J38A
