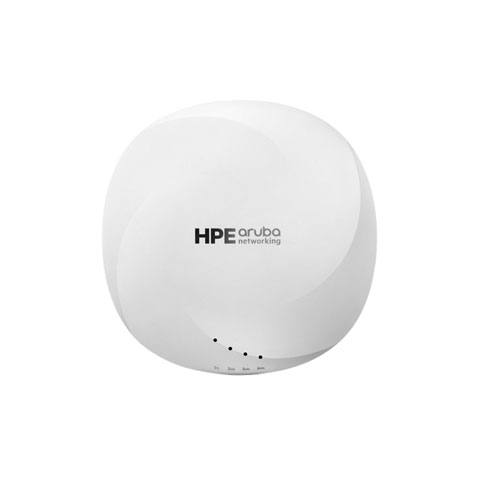

HPE Aruba R7J37A Wireless Access Points

The HPE Aruba Networking 650 Series Campus Access Points are engineered to meet the increasing needs of modern enterprises, providing superior connectivity with Wi-Fi 6E technology. By leveraging a comprehensive tri-band coverage, including 2.4 GHz, 5 GHz, and 6 GHz bands, these access points enable a combined peak data rate of up to 7.8 Gbps. Designed for high-demand applications such as high-definition video streaming and augmented reality, they ensure exceptional performance with reduced interference and increased capacity, making them the ideal choice for supporting a growing influx of customer and IoT devices.

Key Features

• Comprehensive tri-band coverage across 2.4 GHz, and 6 GHz
• Up to 7.8 Gbps combined peak data rate
• 4x4 MIMO radios with MU-MIMO and OFDMA support
• Ultra tri-band filtering to minimize interference
• High availability with dual configurable 5 Gbps Ethernet ports
• Built-in GPS receivers for accurate indoor location tracking

Specifications

• Hardware Variants:
  • AP-654: External antenna models
  • AP-655: Internal antenna models
• Wi-Fi Radio Specifications:
  • 2.4 GHz Radio: 4x4 MIMO, up to 1147 Mbps
  • 5 GHz Radio: 4x4 MIMO, up to 2.4 Gbps
  • 6 GHz Radio: 4x4 MIMO, up to 4.8 Gbps
• Environmental Specifications:
  • Operating Temperature: 0°C to +50°C
  • Storage Temperature: -25°C to +55°C

Flagship offering with the performance to meet growing enterprise needs with Wi-Fi 6E

By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.

MORE CAPACITY AND WIDER CHANNELS

The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. The three 4x4 MIMO radios of the platform deliver a combined peak datarate of up to 7.8Gbps.

Advantages of 6GHz

Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices.

Device class support

For operation in the 6GHz band, the 650 Series APs are part of the low power indoor (LPI) device class. This fixed indooronly class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.

LESS INTERFERENCE

650 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently. Since there is only 50MHz between 5GHz and the 6GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.

BUSINESS CONTINUITY

The Series 650 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps, these dual ports provide business continuity for mission critical applications.
