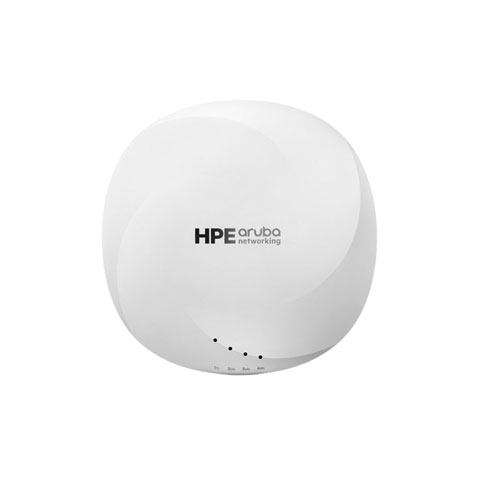

HPE Aruba 650 Series Wireless Access Points Model Overview
The HPE Aruba Networking 650 Series Campus Access Points are engineered to meet the increasing needs of modern enterprises, providing superior connectivity with Wi-Fi 6E technology. By leveraging a comprehensive tri-band coverage, including 2.4 GHz, 5 GHz, and 6 GHz bands, these access points enable a combined peak data rate of up to 7.8 Gbps. Designed for high-demand applications such as high-definition video streaming and augmented reality, they ensure exceptional performance with reduced interference and increased capacity, making them the ideal choice for supporting a growing influx of customer and IoT devices.
Key Features
Comprehensive tri-band coverage across 2.4 GHz, and 6 GHz
Up to 7.8 Gbps combined peak data rate
4x4 MIMO radios with MU-MIMO and OFDMA support
Ultra tri-band filtering to minimize interference
High availability with dual configurable 5 Gbps Ethernet ports
Built-in GPS receivers for accurate indoor location tracking
Specifications
Hardware Variants:
AP-654: External antenna models
AP-655: Internal antenna models
Wi-Fi Radio Specifications:
2.4 GHz Radio: 4x4 MIMO, up to 1147 Mbps
5 GHz Radio: 4x4 MIMO, up to 2.4 Gbps
6 GHz Radio: 4x4 MIMO, up to 4.8 Gbps
Environmental Specifications:
Operating Temperature: 0°C to +50°C
Storage Temperature: -25°C to +55°C
HPE Aruba R7J36A Wireless Access Points Overview
Flagship offering with the performance to meet growing enterprise needs with Wi-Fi 6E
By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
MORE CAPACITY AND WIDER CHANNELS
The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. The three 4x4 MIMO radios of the platform deliver a combined peak datarate of up to 7.8Gbps.
Advantages of 6GHz
Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
For operation in the 6GHz band, the 650 Series APs are part of the low power indoor (LPI) device class. This fixed indooronly class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
LESS INTERFERENCE
650 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently. Since there is only 50MHz between 5GHz and the 6GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.
BUSINESS CONTINUITY
The Series 650 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps, these dual ports provide business continuity for mission critical applications.
What wireless standards does the HPE Aruba R7J36A support?
The HPE Aruba R7J36A is a Wi-Fi 6E access point featuring concurrent tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz bands. It delivers up to 7.8 Gbps aggregate throughput with peak rates of 4.8 Gbps on 6 GHz, 2.4 Gbps on 5 GHz, and 574 Mbps on 2.4 GHz, making it ideal for high-density enterprise environments requiring multi-gigabit performance.
Does the HPE Aruba R7J36A have redundancy and failover capabilities?
Yes, the R7J36A features dual 5 Gbps Smart Rate Ethernet ports with hitless failover and data/power redundancy built in. This ensures continuous service availability even during port or power failures, making it suitable for mission-critical warehouse and logistics operations where network downtime is costly.
What IoT and location capabilities does this access point offer?
The HPE Aruba R7J36A includes embedded Bluetooth 5 and 802.15.4/Zigbee radios for IoT device connectivity, plus onboard GPS and barometric sensors for indoor positioning. These integrated capabilities enable asset tracking, environmental monitoring, and location-based services without requiring additional hardware.
What are the power requirements and options for the HPE Aruba R7J36A?
The R7J36A supports flexible power delivery via Power-over-Ethernet (PoE) at 78 watts total capacity or 12V DC input, with a maximum power consumption of 126 watts. Both configurable 5 Gbps Ethernet ports are PoE-capable, simplifying deployment in warehouse environments where centralized power management is preferred.
Is the HPE Aruba R7J36A suitable for harsh warehouse environments?
Yes, the R7J36A is rated for operating temperatures from 0–50°C and humidity levels from 5–95% RH, making it suitable for diverse warehouse and logistics environments. Its compact form factor (260×260×60 mm) and 1.8 kg weight also enable flexible mounting in space-constrained areas.
How does the R7J36A eliminate coverage gaps between 5 GHz and 6 GHz?
The HPE Aruba R7J36A features patented ultra tri-band filtering technology that prevents interference and coverage gaps between the 5 GHz and 6 GHz bands. This ensures seamless roaming and consistent performance across the entire frequency spectrum, critical for warehouse operations requiring reliable connectivity across large areas.
