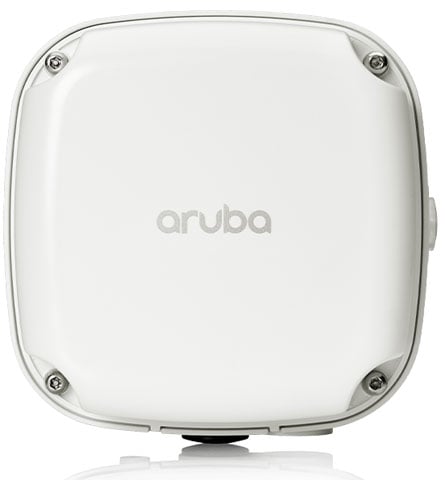

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W59A Wireless Access Points Overview
Aruba 560 Series Outdoor Access Points
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What wireless standard and performance does the HPE Aruba 560 Series AP support?
The HPE Aruba 560 Series AP delivers Wi-Fi 6 (802.11ax) performance with 1.49 Gbps aggregate throughput across dual 2×2:2 radios. It achieves 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band, utilizing OFDMA and MU-MIMO technologies for optimized multi-user capacity. We offer this access point as an ideal solution for enterprise deployments requiring high-performance outdoor wireless coverage.
Can the HPE Aruba 560 Series AP be used in harsh outdoor environments?
Yes, the 560 Series AP is specifically engineered for outdoor deployment with an IP55-rated enclosure that resists dust and moisture. It operates reliably across extreme temperatures from –40 °C to +65 °C and features wind-resistant construction, making it suitable for campuses, venues, and industrial sites. Contact us today to discuss outdoor AP solutions for your specific environmental requirements.
Does this access point support IoT device connectivity?
Yes, the HPE Aruba 560 Series AP includes integrated Bluetooth 5 and Zigbee radios for seamless IoT integration alongside Wi-Fi 6 connectivity. This multi-protocol support enables organizations to deploy unified wireless infrastructure for both traditional data traffic and IoT sensor networks. Visit barcodesinc.com to explore our complete IoT-enabled wireless solutions.
What power options are available for the HPE Aruba 560 Series AP?
The 560 Series AP supports flexible power delivery via 802.3af/at PoE (Power over Ethernet) or 12 V DC input, with a maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This efficient power design reduces operational costs while the PoE option simplifies deployment by eliminating separate power infrastructure. We offer both power configurations to meet your site-specific installation needs.
How is the HPE Aruba 560 Series AP provisioned and managed?
The 560 Series AP features zero-touch provisioning and cloud-based centralized management, significantly reducing operational complexity during deployment and ongoing administration. Built-in dynamic segmentation and policy enforcement firewalls enable secure separation of guest and operational traffic without additional hardware. Our team can help you implement these management capabilities to streamline your wireless infrastructure.
What antenna options are available for the HPE Aruba 560 Series AP?
We offer the 560 Series AP with two antenna configurations: internal omnidirectional antenna for 360-degree coverage or integrated directional antenna for focused signal delivery. The directional antenna option (model AP-567) is particularly useful for point-to-point links or coverage optimization in specific deployment zones. Contact us today to determine which antenna configuration best suits your site survey and coverage requirements.
The HPE Aruba R4W59A Wireless Access Points is also known as
HPE-R4W59A
