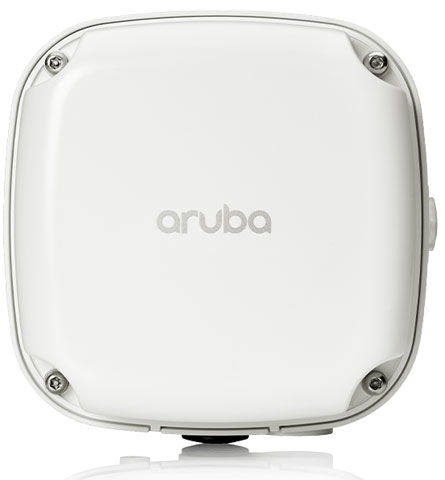

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W58A Wireless Access Points Overview
Aruba 560 Series Outdoor Access Points
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput with dual 2×2:2 radios—1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses and venues. Contact us today to discuss throughput requirements for your specific environment.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is purpose-built for outdoor deployment with an IP55-rated enclosure that resists dust and moisture, and operates reliably in temperatures ranging from –40 °C to +65 °C while withstanding wind resistance. This rugged design makes it ideal for industrial sites, outdoor campuses, and venues where standard indoor APs would fail. We offer this model specifically for enterprises requiring weather-resistant wireless infrastructure.
Does this access point support IoT devices and sensors?
Yes, the HPE Aruba 560 Series includes integrated Bluetooth 5 and Zigbee radios for seamless IoT integration, allowing you to connect wireless sensors, beacons, and IoT devices alongside your primary Wi-Fi 6 network. This multi-radio approach simplifies deployment of comprehensive wireless solutions for smart campuses and industrial IoT applications. Visit barcodesinc.com to explore our full range of IoT-enabled wireless solutions.
What power options are available for the HPE Aruba 560 Series AP?
The 560 Series supports both 802.3af/at PoE (Power over Ethernet) and 12 V DC power options, with maximum power consumption of 15.6 W and idle consumption as low as 4.2 W. This flexibility allows you to choose the power delivery method that best fits your network infrastructure and deployment location. Contact us today for guidance on power planning for your outdoor wireless deployment.
How does centralized management simplify deployment of the HPE Aruba 560 Series?
The 560 Series features zero-touch provisioning and cloud-based centralized management that dramatically reduces operational complexity, allowing you to deploy and configure multiple APs without manual intervention. Built-in dynamic segmentation and policy enforcement firewalls provide security for guest and operational traffic from a single management console. We offer comprehensive support for HPE Aruba's management platforms to streamline your wireless operations.
What antenna options are available for the HPE Aruba 560 Series?
The HPE Aruba 560 Series is available in two antenna configurations: integrated omnidirectional antennas for 360-degree coverage and integrated directional antennas for focused coverage in specific directions. The directional antenna option is particularly useful for point-to-point links or coverage in specific outdoor zones. Contact us today to determine which antenna configuration best suits your site survey and coverage requirements.
The HPE Aruba R4W58A Wireless Access Points is also known as
HPE-R4W58A
