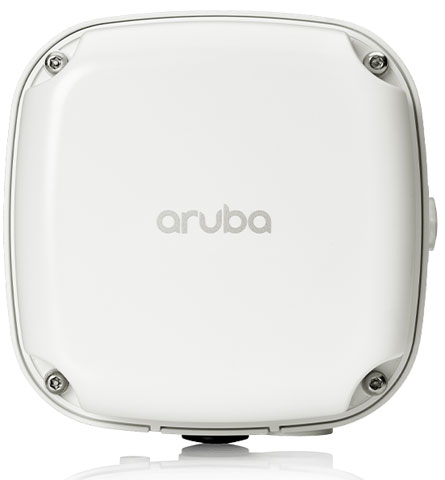

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W57A Wireless Access Points Overview
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What wireless performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate Wi-Fi 6 throughput, with 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses, venues, and industrial sites. We offer this access point as part of our comprehensive wireless networking solutions.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is specifically designed for outdoor deployment with an IP55-rated enclosure that resists dust and moisture while operating in extreme temperatures from –40 °C to +65 °C. The access point is weather and wind resistant, making it ideal for industrial sites and outdoor venue coverage. Contact us today to discuss your environmental requirements and deployment specifications.
What IoT connectivity options does this access point provide?
The HPE Aruba 560 Series integrates Bluetooth 5 and Zigbee radios alongside Wi-Fi 6, enabling seamless IoT device connectivity and management within a single access point. This integrated approach simplifies network architecture and reduces the need for separate IoT infrastructure. We offer this multi-protocol capability to streamline your IoT deployments.
How is the HPE Aruba 560 Series provisioned and managed?
The access point features zero-touch provisioning and centralized cloud management, which significantly reduces operational complexity during deployment and ongoing administration. Dynamic segmentation and built-in firewall capabilities enable policy enforcement to keep guest and operational traffic secure. Visit barcodesinc.com to learn how our team can assist with your wireless infrastructure management.
What power options are available for the HPE Aruba 560 Series?
The 560 Series supports both 802.3af/at Power over Ethernet (PoE) and 12 V DC power options, with maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This flexibility allows you to choose the power delivery method that best fits your network infrastructure. Available from us with full technical support for your power architecture planning.
What antenna options are available for the HPE Aruba 560 Series?
The HPE Aruba 560 Series is available with either an internal omnidirectional antenna or an integrated directional antenna, allowing you to select the coverage pattern that best matches your deployment environment. Both options maintain the same rugged IP55-rated outdoor form factor and performance specifications. Contact us today to determine which antenna configuration is optimal for your coverage requirements.
