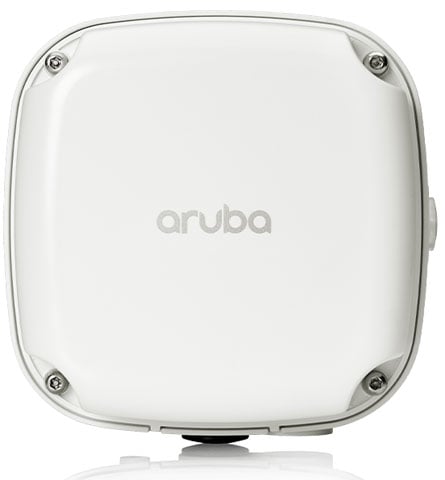

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W54A Wireless Access Points Overview
Aruba 560 Series Outdoor Access Points
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What is the maximum throughput of the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers 1.49 Gbps aggregate Wi-Fi 6 throughput, with 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. This performance is optimized through OFDMA and MU-MIMO technologies, which enable efficient multi-user access and reduce latency in high-density environments. We offer this access point for deployments requiring enterprise-class Wi-Fi 6 coverage.
Can the HPE Aruba R4W54A be used outdoors in harsh weather conditions?
Yes, the HPE Aruba 560 Series is specifically designed for outdoor deployment with an IP55-rated enclosure that resists dust and moisture, and operates reliably in temperatures ranging from –40 °C to +65 °C. The access point is also wind-resistant, making it ideal for campuses, venues, and industrial sites exposed to extreme weather. Contact us today to discuss outdoor installation requirements for your environment.
What IoT connectivity options does this access point support?
The HPE Aruba 560 Series includes integrated Bluetooth 5 and Zigbee radios, enabling seamless IoT device integration alongside standard Wi-Fi 6 connectivity. These additional radios allow you to deploy a unified wireless infrastructure that supports both enterprise networking and IoT sensors without requiring separate hardware. Visit barcodesinc.com to explore IoT-ready access point configurations available from us.
How is the HPE Aruba 560 Series provisioned and managed?
The access point features zero-touch provisioning and centralized cloud management, which significantly reduces operational complexity and deployment time. Dynamic segmentation and built-in firewall capabilities enforce security policies, keeping guest and operational traffic isolated and protected. Our team can assist with integration into your existing management infrastructure—contact us today for deployment support.
What are the power requirements and consumption specifications?
The HPE Aruba 560 Series supports flexible power delivery via 802.3af/at PoE or 12 V DC, with maximum power consumption of 15.6 W and idle consumption of just 4.2 W. The single 1×1 GbE RJ-45 port handles both uplink connectivity and power delivery when using PoE. This efficient power profile makes it cost-effective for large-scale outdoor deployments available from us.
What antenna options are available for the HPE Aruba 560 Series?
The HPE Aruba 560 Series offers two model options: one with an integrated internal omnidirectional antenna for uniform 360-degree coverage, and another with an integrated directional antenna for focused coverage in specific directions. The choice between these antenna types depends on your deployment topology and coverage requirements. Contact us today to select the optimal configuration for your site.
The HPE Aruba R4W54A Wireless Access Points is also known as
HPE-R4W54A
