HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg

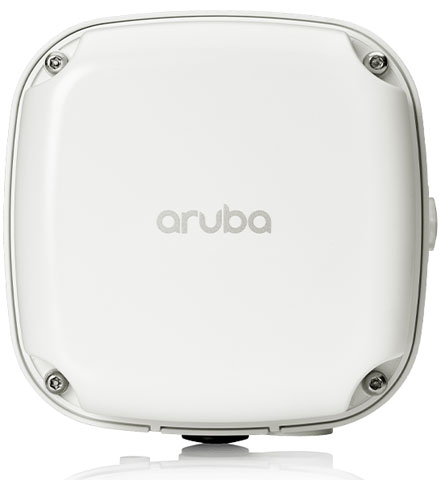

HPE Aruba R4W52A Wireless Access Points Overview
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput across its dual 2×2:2 radios, with 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses and venues. We offer this model with flexible antenna options—internal omni or integrated directional—to match your specific coverage requirements.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is specifically designed for outdoor deployment with an IP55-rated enclosure that resists dust and moisture. It operates reliably across extreme temperatures from –40 °C to +65 °C and is wind-resistant, making it ideal for industrial sites, campuses, and outdoor venues. Contact us today to discuss your environmental requirements and ensure proper placement for optimal performance.
What IoT capabilities does this access point support?
The HPE Aruba 560 Series integrates Bluetooth 5 and Zigbee radios natively, enabling seamless IoT device connectivity without requiring separate hardware. This integrated approach simplifies deployment and management of IoT networks across your facility. Visit barcodesinc.com to explore how we can help you design a converged wireless infrastructure for both operational and IoT traffic.
How is the 560 Series provisioned and managed?
The access point features zero-touch provisioning and centralized cloud management, significantly reducing operational complexity during deployment and ongoing maintenance. Built-in dynamic segmentation and policy enforcement firewalls keep guest and operational traffic secure and separate. Our team can assist with integration into your existing management infrastructure—contact us today for deployment support.
What power options are available for the HPE Aruba 560 Series?
The 560 Series supports both 802.3af/at PoE (Power over Ethernet) and 12 V DC power options, providing flexibility for various installation scenarios. Power consumption is efficient at just 15.6 W maximum under load and 4.2 W during idle operation, helping reduce energy costs in large deployments. We offer guidance on power infrastructure planning—contact us today to discuss your specific needs.
What connectivity options does the 560 Series provide?
The access point includes a single 1×1 GbE RJ-45 port for uplink connectivity to your network infrastructure, with a compact form factor measuring 110 × 165 × 165 mm and weighing just 1.09 kg. This makes it easy to mount in outdoor locations while maintaining reliable backhaul connections. Available from us with full technical support—visit barcodesinc.com or contact us today for installation guidance.
