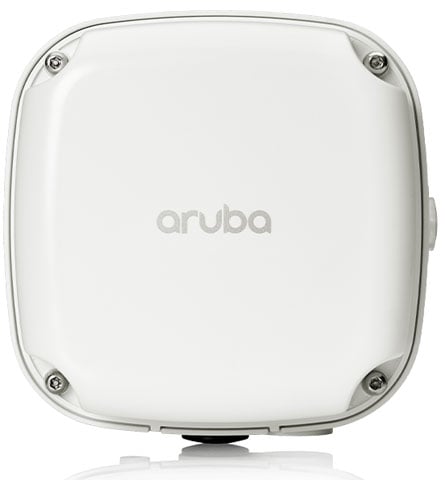

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W51A Wireless Access Points Overview
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput with dual 2×2:2 radios—achieving 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses, venues, and industrial sites. We offer this access point as a complete solution ready for immediate deployment.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is specifically designed for outdoor use with an IP55-rated enclosure that resists dust and moisture while operating reliably in extreme temperatures from –40 °C to +65 °C. Its weather and wind-resistant construction makes it ideal for industrial sites, outdoor venues, and campus deployments where environmental durability is critical. Contact us today to discuss your specific environmental requirements.
What IoT integration capabilities does this access point provide?
The HPE Aruba 560 Series includes integrated Bluetooth 5 and Zigbee radios that enable seamless IoT device connectivity alongside standard Wi-Fi 6 operations. This multi-protocol support allows you to deploy sensors, beacons, and IoT endpoints without requiring separate infrastructure. We offer this integrated approach to simplify your IoT deployments across campuses and industrial environments.
How is the HPE Aruba 560 Series provisioned and managed?
The 560 Series supports zero-touch provisioning and centralized cloud management, significantly reducing operational complexity during deployment and ongoing administration. Dynamic segmentation and built-in firewall capabilities enable policy enforcement to keep guest and operational traffic secure without manual configuration. Visit barcodesinc.com to learn how our team can streamline your deployment process.
What power options are available for the HPE Aruba 560 Series?
The access point supports flexible power delivery via either 802.3af/at PoE (Power over Ethernet) or 12 V DC, with maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This flexibility allows you to integrate the AP into existing infrastructure or use dedicated power supplies depending on your deployment scenario. Available from us with comprehensive support for your power architecture planning.
What antenna options are available for the HPE Aruba 560 Series?
The 560 Series is available in two antenna configurations: integrated omni-directional antennas for uniform coverage, or integrated directional antennas for focused coverage patterns. Both options are built into the rugged outdoor enclosure, eliminating the need for external antenna installations. Contact us today to determine which antenna configuration best suits your coverage requirements.
