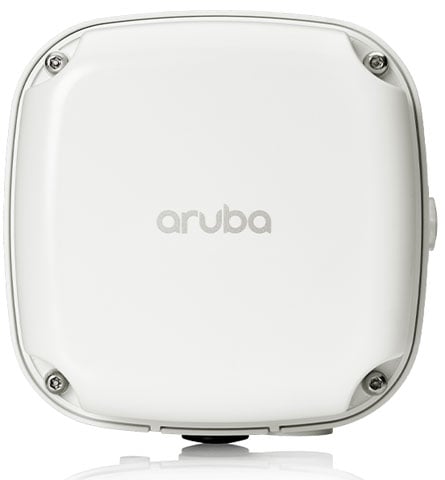

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W49A Wireless Access Points Overview
Aruba 560 Series Outdoor Access Points
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput across its dual 2×2:2 radios, with 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses, venues, and industrial sites. Contact us today to discuss which antenna configuration best fits your coverage requirements.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is specifically designed for outdoor deployment with an IP55-rated enclosure that resists dust and moisture, and operates reliably in extreme temperatures from –40 °C to +65 °C. Its weather and wind-resistant construction makes it ideal for industrial sites, outdoor venues, and campus perimeters where standard indoor APs cannot survive. Visit barcodesinc.com to explore our outdoor access point solutions.
What IoT connectivity options does this access point provide?
The HPE Aruba 560 Series integrates Bluetooth 5 and Zigbee radios alongside Wi-Fi 6, enabling seamless IoT device connectivity without requiring separate infrastructure. This integrated approach simplifies deployments for organizations managing sensors, beacons, and other wireless IoT endpoints across their network. Contact us today for guidance on IoT integration strategies.
What power options are available for the HPE Aruba 560 Series AP?
The access point supports both 802.3af/at Power over Ethernet (PoE) and 12 V DC power options, with a maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This flexibility allows deployment in locations where traditional PoE infrastructure may not be available, while the low power draw reduces operational costs. We offer compatible power solutions—contact us today for your specific installation needs.
How does centralized management work with the HPE Aruba 560 Series?
The 560 Series features zero-touch provisioning and cloud-based centralized management that significantly reduces operational complexity and deployment time. Built-in dynamic segmentation and policy enforcement firewalls enable you to isolate guest traffic from operational networks, while automated provisioning streamlines device onboarding across your deployment. Contact us today to learn about management platform integration options available from us.
What are the physical dimensions and connectivity specifications of this AP?
The HPE Aruba 560 Series measures 110 × 165 × 165 mm and weighs 1.09 kg, making it compact enough for discrete outdoor mounting. It features a single 1×1 GbE RJ-45 port for uplink connectivity, with model options for either internal omnidirectional or integrated directional antenna configurations. Visit barcodesinc.com or contact us today to select the antenna type that matches your site survey requirements.
The HPE Aruba R4W49A Wireless Access Points is also known as
HPE-R4W49A
