HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg

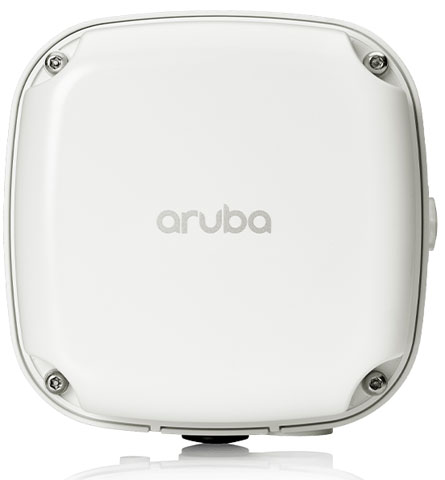

HPE Aruba R4W42A Wireless Access Points Overview
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What is the maximum Wi-Fi 6 throughput of the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series AP delivers up to 1.49 Gbps aggregate throughput across its dual 2×2:2 radios. This includes 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band, with OFDMA and MU-MIMO technology optimizing capacity for multi-user environments. We offer this access point for outdoor deployments requiring enterprise-class Wi-Fi 6 performance.
Is the HPE Aruba 560 Series suitable for outdoor and extreme weather conditions?
Yes, the 560 Series AP is specifically designed for outdoor use with an IP55-rated enclosure that resists dust and moisture. It operates reliably across a temperature range of –40 °C to +65 °C and is wind-resistant, making it ideal for campuses, venues, and industrial sites. Contact us today to discuss deployment options for your harsh environment requirements.
Does this access point support IoT device connectivity?
The HPE Aruba 560 Series includes integrated Bluetooth 5 and Zigbee radios for seamless IoT integration alongside Wi-Fi 6 connectivity. This multi-protocol support allows you to deploy a unified wireless infrastructure for both traditional network devices and IoT sensors. We offer this model to support comprehensive IoT deployments across your facility.
What power options are available for the HPE Aruba 560 Series AP?
The 560 Series supports both 802.3af/at Power over Ethernet (PoE) and 12 V DC power options, with maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This flexibility allows installation in locations with varying power infrastructure while maintaining energy efficiency. Visit barcodesinc.com to explore power configuration options for your deployment.
How does the HPE Aruba 560 Series simplify network management and provisioning?
The 560 Series features zero-touch provisioning and centralized cloud management, significantly reducing operational complexity during deployment and ongoing management. Built-in dynamic segmentation and firewall capabilities enforce security policies while keeping guest and operational traffic separate. Our team can help you implement these management features to streamline your wireless network operations.
What are the antenna options available for the HPE Aruba 560 Series?
The 560 Series is available with either integrated internal omnidirectional antennas or integrated directional antennas, allowing you to select the model best suited to your coverage requirements. Both options maintain the rugged IP55-rated outdoor enclosure and deliver the same 1.49 Gbps aggregate throughput. Contact us today to determine which antenna configuration is optimal for your site.
