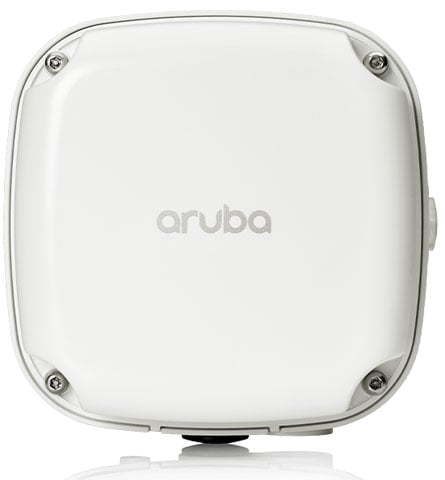

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W40A Wireless Access Points Overview
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput with dual 2×2:2 radios, achieving 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses, venues, and industrial sites.
Is the HPE Aruba R4W40A suitable for outdoor and harsh environments?
Yes, the 560 Series AP features an IP55-rated enclosure that resists dust and moisture, with an operating temperature range of –40 °C to +65 °C and wind-resistant construction. This rugged design makes it perfect for outdoor deployments in extreme weather conditions while maintaining reliable enterprise-class performance.
What IoT connectivity options does this access point support?
The HPE Aruba 560 Series includes integrated Bluetooth 5 and Zigbee radios for seamless IoT deployments alongside Wi-Fi 6 connectivity. These additional radios enable you to support diverse IoT devices and sensors without requiring separate infrastructure.
How is the HPE Aruba 560 Series provisioned and managed?
The access point supports zero-touch provisioning and centralized cloud management, significantly reducing operational complexity. Built-in dynamic segmentation and policy enforcement firewalls keep guest and operational traffic secure while simplifying network administration across your deployment.
What power options are available for the HPE Aruba R4W40A?
The 560 Series AP supports flexible power delivery via either 802.3af/at PoE or 12 V DC, with a maximum power consumption of 15.6 W and idle consumption of just 4.2 W. This flexibility allows easy integration into existing infrastructure with minimal power overhead.
What are the physical specifications and connectivity options for this outdoor AP?
The HPE Aruba 560 Series measures 110 × 165 × 165 mm and weighs 1.09 kg, featuring a single 1×1 GbE RJ-45 port for uplink connectivity. Model options include internal omni or integrated directional antenna configurations to suit your specific deployment requirements. Contact us today to find the right antenna configuration for your site.
